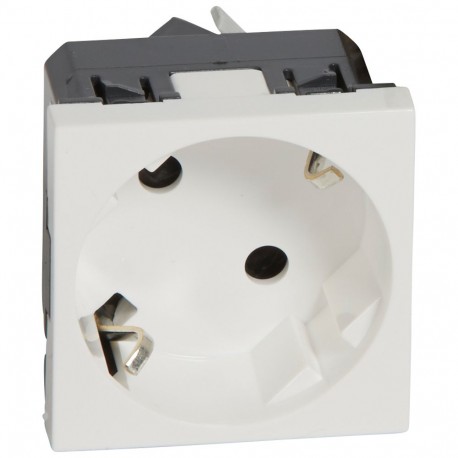

LEGRAND 077245 077245 LEGRAND MO-2P+T, 2M BL AUT 45G View larger
Images are for illustrative purposes only. Please refer to data sheet for details

077245 LEGRAND MO-2P+T, 2M BL AUT 45G

077245

077245

LEGRAND

10 Pcs.

MO-2P+T, 2M BL AUT 45G Multi-support single socket Mosaic - German standard - 2P+E angled at 45° - 2 modules Mosaic Power Base - 2P+T - 2mod - At 45º Angle - White

Automation > Socket outlet
MOSAIC, ARTEOR AND CELIANE MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 077245 LEGRAND MO-2P+T, 2M BL AUT 45G is a modular grid-mounted socket outlet intended to distribute electrical current to compatible plugs. Grid systems allow flexible configuration of power and data points within standard raceways and enclosures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 16 A
  • Rotated central insert (EF001331): Yes
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Module frame/grid
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwless terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 2
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • Min. depth of built-in installation box (EF012278): 40 mm

More info

▲
  • Pack (number of units)10
  • Volume (dm3)1.581
  • Weight (g)385.00
Product characteristics
Multi-support single socket outlets - German standard
  • For installation in flush-mounting box, surface mounting box, floor box, column module, desktop multi-outlet extension, office module and trunking
  • 2 modules
2P+E angled 45°
  • White - automatic terminals
  • Can be installed in receptacles for floor sockets
General characteristics
Mosaic™ Programme mechanisms - German standard multi-support single and multiple socket outlets
