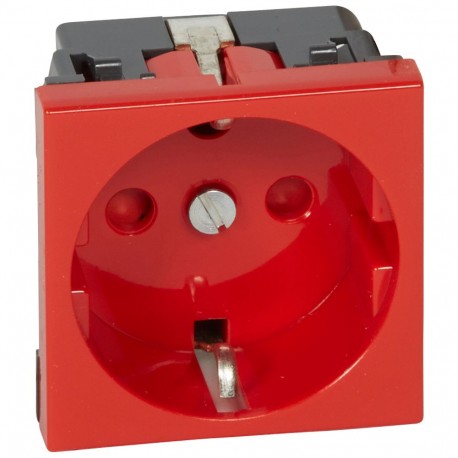

LEGRAND 077214 077214 LEGRAND MO-2P+T, 2M RO TOR SEL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

077214 LEGRAND MO-2P+T, 2M RO TOR SEL

077214

077214

LEGRAND

10 Pcs.

MO-2P+T, 2M RO TOR SEL Socket outlet Mosaic - German standard - 2P+E screw terminals - 2 modules - red tamperproof Mosaic Power Base - 2P+T - 2mod - Selective Oturator - Red

Automation > Socket outlet
MOSAIC, ARTEOR AND CELIANE MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 077214 modular socket outlet integrates into grid frames to supply secure power distribution for trunking and panel assemblies. These components provide reliable electrical interfaces for commercial cabling configurations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 16 A
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Module frame/grid
  • Special power supply (EF001334): Additional safety power supply (red)
  • Connection type (EF000124): Screwed terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 2
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • Min. depth of built-in installation box (EF012278): 40 mm

More info

▲
  • Pack (number of units)10
  • Volume (dm3)1.57
  • Weight (g)412.00
Product characteristics
Multi-support single socket outlets - German standard
  • For installation in flush-mounting box, surface mounting box, floor box, column module, desktop multi-outlet extension, office module and trunking
  • 2 modules
2P+E tamperproof
  • Red - screw terminals
  • To be used with the tamperproof insert Cat.No 0 502 99
  • Can be installed in receptacles for floor sockets
General characteristics
Mosaic™ Programme mechanisms - German standard multi-support single and multiple socket outlets
