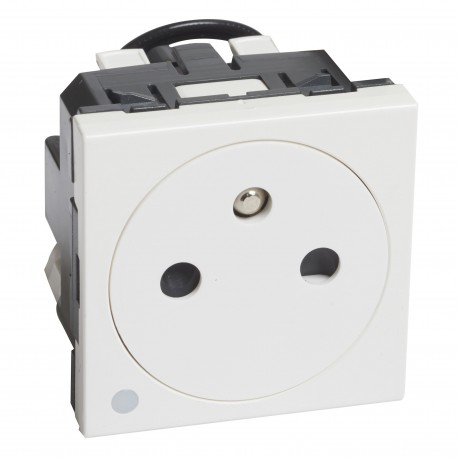

LEGRAND 077135 077135 LEGRAND MO-BASE FB 2P+T AUT IND BL AB View larger
Images are for illustrative purposes only. Please refer to data sheet for details

077135 LEGRAND MO-BASE FB 2P+T AUT IND BL AB

077135

077135

LEGRAND

10 Pcs.

MO-BASE FB 2P+T AUT IND BL AB Mosaic power base - French standard - 2P+T - 2 modules - Flush with spigot - A utomatic - With indicator - Antibacterial white Mosaic power base - French standard - 2x2P+T - indicator - Bl antibact

Automation > Socket outlet
MOSAIC, ARTEOR AND CELIANE MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
2P+T FB (French standard) base or socket flush with surface Mosaic with pilot light. 2 modules. Automatic terminal. For installation in recessed box, surface, workstation, floor boxes, columns, channel... Being flush facilitates cleaning and prevents the accumulation of residues. Antibacterial white color. Dimensions 45x45x38.5 mm. IK04, IP41. Halogen-free. UV resistance. Polycarbonate material. These products are made from antimicrobial* material based on silver ions. This technology kills bacteria, fungi, and viruses without creating any immunization or resistance effects (physical, rather than chemical, destruction). Especially suitable for health establishments (hospitals, clinics, nursing homes, laboratories, waiting rooms, etc.) and, more generally, for areas subject to hygiene restrictions (industrial kitchens, kitchens, waste, etc.). These products offer an additional way to ensure the non-proliferation of bacteria, fungi and viruses without interfering with cleaning protocols.
ModelGrounding plug
Neutral Conductor CouplingNo
Protective contactRound
Number of active (round) contacts2
Number of active contacts (drawings)0
Number of active contacts (square)0
Type of mountingBasic element with center cover plate, module housing support
With signal lampYes
Number of USB-A ports0
Number of USB-C ports0
Number of sockets1
Phase-separated power outletsNo
Number of modules (in case of modular design)2
Number of interchangeable sockets0
Number of phases1
Printing/Markingnone
Connection MethodPlug clamp
With flip-top lidNo
With enhanced contact protectionYes
Label Space/Print AreaNo
ColourWhite
RAL number (similar)9003
Metallic colorNo
TransparentNo
LockableNo
Expulsion mechanismNo
Isolated installationYes
With functional lightingYes
With adjustable lightingNo
Surge protectionNo
Residual Current DeviceNo
With microfusionNo
Special power supplynone
Attachment TypeHemming
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishBright
Antibacterial treatmentYes
With loop functionYes
With on/off switchNo
Switching element colorWhite
Rotated center insertNo
Nominal intensity16 A
Nominal Voltage250 V
frequency50-60 Hz
Suitable for protection grade (IP)IP41
Impact resistanceIK04
Device width45 mm
Device height45 mm
Device Depth38.5 mm
Compatible with Apple HomeKitNo
Compatible with Amazon AlexaNo
Compatible with Google AssistantNo
Compatible IFTTTNo
With Wi-Fi signal repeaterNo
With built-in bluetooth speakerNo
For server conditions according to VDENo
Installation Depth30 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
Power DeliveryNo
Connection Cable TypeRigid
Core cross-section2.5-2.5 mm²
Cable HolderOther
Connected ObjectNo

ETIM for 077135 Domestic wiring accessories and controls (EC000125)
Feature Name Feature Value
Over voltage protection (EF001332) No
Nominal current (EF000001) 16 A
Rotated central insert (EF001331) No
Material quality (EF001257) Thermoplastic
Mounting method (EF000003) Module frame/grid
Special power supply (EF001334) EV006426
Connection type (EF000124) Screwless terminal
Fault current protection (EF001333) No
Nominal voltage (EF000002) 250 V
Number of modules (module system) (EF009573) 2
Compatible with Apple HomeKit (EF014925) No
Eject-mechanism (EF001051) No
Compatible with Amazon Alexa (EF014927) No
Compatible with Google Assistant (EF014926) No
Number of ports USB-C (EF017049) 0
Imprint/indication (EF003823) None
With hinged lid (EF000117) No
Number of ports USB-A (EF000997) 0
Metallic colour (EF015260) No
With Wi-Fi signal repeater (EF013509) No
RAL-number (similar) (EF003882) 9003
Model (EF000010) Earthing pin
Number of socket outlets switchable (EF008814) 0
Suitable for degree of protection (IP) (EF006755) IP41
Device depth (EF008810) 38.5 mm
Impact strength (EF004293) IK04
Anti-bacterial treatment (EF023790) Yes
Number of active contacts (square) (EF017115) 0
Protective contact (EF017116) Round
Device width (EF008808) 45 mm
With on/off switch (EF000488) No
Device height (EF008809) 45 mm
Colour (EF000007) White
For heavy conditions according to VDE (EFDE0005) No
Number of active contacts (flat) (EF011999) 0
Number of active contacts (round) (EF011998) 2
Material (EF002169) Plastic
With orientation lighting (EF008862) No
Label space/information surface (EF001035) No
Surface finishing (EF006569) Glossy
Concurrently switching neutral conductor (EF005997) No
Halogen free (EF000025) Yes
Type of fastening (EF002442) Snap mounting (engagement)
With function lighting (EF008861) Yes
Transparent (EF006243) No
Colour of switch operator (EF015518) White
Insulated mounting (EF001588) Yes
Surface protection (EF000139) Untreated
Frequency (EF000416) 50 Hz
Number of phases (EF000351) 1
With signal lamp (EF000198) Yes
Lockable (EF000113) No
With built-in bluetooth speaker (EF016914) No
With miniature fuse (EF006571) No
IFTTT support available (EF011072) No
With enhanced contact protection (EF000389) Yes
With loop through function (EF006604) Yes
