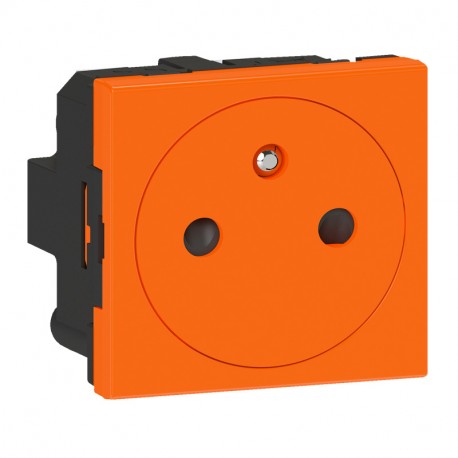

077117L LEGRAND MO-BASE FB 2P+T AUT RAS NA AB
077117L
077117L
LEGRAND
10 Pcs.
MO-BASE FB 2P+T AUT RAS NA AB
Mosaic power base - French standard - 2P+T - 2 modules - Flush with spigot - A utomatic - Antibacterial orange
Mosaic power base - French standard - 2x2P+T - Antibacterial orange
Automation > Socket outlet
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 077117L LEGRAND MO-BASE FB 2P+T AUT RAS NA AB is a modular socket outlet featuring a specialized safety power supply connection for structured grid systems. Outlets with specialized supply designations help differentiate critical or backup circuits in commercial environments. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Over voltage protection (EF001332): No
- Nominal current (EF000001): 16 A
- Rotated central insert (EF001331): No
- Material quality (EF001257): Thermoplastic
- Mounting method (EF000003): Module frame/grid
- Special power supply (EF001334): Supplementary safety power supply (orange)
- Connection type (EF000124): Screwless terminal
- Fault current protection (EF001333): No
- Nominal voltage (EF000002): 250 V
- Number of modules (module system) (EF009573): 2
- Compatible with Apple HomeKit (EF014925): No
- Eject-mechanism (EF001051): No
- Compatible with Amazon Alexa (EF014927): No
- Compatible with Google Assistant (EF014926): No
- Number of ports USB-C (EF017049): 0
- With hinged lid (EF000117): No
More info
▲
2P+T FB (French standard) base or socket flush with surface Mosaic with pilot light. 2 modules. Automatic terminal. For installation in recessed box, surface, workstation, floor boxes, columns, channel... Being flush facilitates cleaning and prevents the accumulation of residues. Antibacterial orange color. Dimensions 45x45x38.5 mm. IK04, IP41. Halogen-free. UV resistance. Polycarbonate material. These products are made from antimicrobial* material based on silver ions. This technology kills bacteria, fungi, and viruses without creating any immunization or resistance effects (physical, rather than chemical, destruction). Especially suitable for health establishments (hospitals, clinics, nursing homes, laboratories, waiting rooms, etc.) and, more generally, for areas subject to hygiene restrictions (industrial kitchens, kitchens, waste, etc.). These products offer an additional way to ensure the non-proliferation of bacteria, fungi and viruses without interfering with cleaning protocols.
| Model | Grounding plug |
|---|---|
| Neutral Conductor Coupling | No |
| Protective contact | Round |
| Number of active (round) contacts | 2 |
| Number of active contacts (drawings) | 0 |
| Number of active contacts (square) | 0 |
| Type of mounting | Basic element with center cover plate, module housing support |
| With signal lamp | No |
| Number of USB-A ports | 0 |
| Number of USB-C ports | 0 |
| Number of sockets | 1 |
| Phase-separated power outlets | No |
| Number of modules (in case of modular design) | 2 |
| Number of interchangeable sockets | 0 |
| Number of phases | 1 |
| Printing/Marking | none |
| Connection Method | Plug clamp |
| With flip-top lid | No |
| With enhanced contact protection | Yes |
| Label Space/Print Area | No |
| Colour | Orange |
| RAL number (similar) | 2003 |
| Metallic color | No |
| Transparent | No |
| Lockable | No |
| Expulsion mechanism | No |
| Isolated installation | Yes |
| With functional lighting | No |
| With adjustable lighting | No |
| Surge protection | No |
| Residual Current Device | No |
| With microfusion | No |
| Special power supply | Supplemental Safety Power (Orange) |
| Attachment Type | Hemming |
| Material | Plastic |
|---|---|
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | No treatment |
| Surface Finish | Bright |
| Antibacterial treatment | Yes |
| With loop function | Yes |
| With on/off switch | No |
| Switching element color | Orange |
| Rotated center insert | No |
| Nominal intensity | 16 A |
| Nominal Voltage | 250 V |
| frequency | 50-60 Hz |
| Suitable for protection grade (IP) | IP41 |
| Impact resistance | IK04 |
| Device width | 45 mm |
| Device height | 45 mm |
| Device Depth | 38 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible IFTTT | No |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| For server conditions according to VDE | No |
| Installation Depth | 30 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| Power Delivery | No |
| Display of markings on the connection terminals | Yes |
| Core cross-section | 2.5-2.5 mm² |
| Cable Holder | Other |
| Connected Object | No |
