View larger
Images are for illustrative purposes only. Please refer to data sheet for details

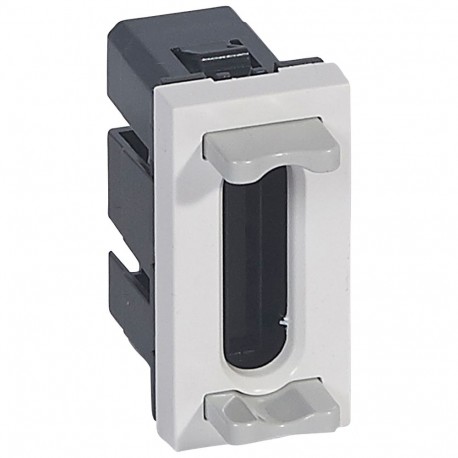

077080 LEGRAND MO-ANTI-JERKS
077080
077080
LEGRAND
1 Pcs.
MO-ANTI-JERKS
Anti-extraction modules Mosaic - 1 module - antimicrobial
Anti-pull module for cables from Ø 4 to 8mm - 1mod - Antibacterial white
Automation > Control element/cover plate for domestic switching devices
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.101
- Weight (g)23.00
Product characteristics
Anti-extraction module- When used with a socket, avoids accidental unplugging of sensitive electrical equipment, by gripping the cord (Ø4 to 8 mm cords)
- Can withstand an extraction force of 350 N (35 kgs)
- 1 module - white antimicrobial
- Contains a silver compound to prevent the growth of bacteria on the surface of the plate
General characteristics
Mosaic™ Programme mechanisms - voltage surge protector, replacement module, buzzers, bells, blanking plates, cable outlets and proximity MCBs| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 45 mm |
| RAL-number (similar) (EF003882) | 9003 |
| Model (EF000010) | Other |
| Suitable for touch sensor connector for bus system (EF007802) | No |
| Material (EF002169) | Plastic |
| Utilization (EF000133) | Other |
| Monitoring window/light outlet (EF003864) | No |
| Surface finishing (EF006569) | Glossy |
| Type of fastening (EF002442) | Engage (snap) |
| Suitable for degree of protection (IP) (EF006755) | Other |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| With exchangeable lens/symbol (EF006039) | No |
| With label area (EF005040) | No |
| Anti-bacterial treatment (EF023790) | Yes |
| Impact strength (EF004293) | IK04 |
| Imprint/indication (EF003823) | None |
| Depth (EF000049) | 41.5 mm |
| Colour (EF000007) | White |
| Surface protection (EF000139) | Untreated |
| Width (EF000008) | 22.5 mm |
