View larger
Images are for illustrative purposes only. Please refer to data sheet for details

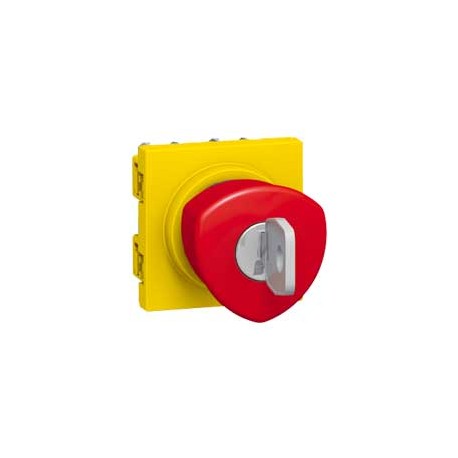

076601 LEGRAND MO-PULS EMERGE WITH 2M KEY
076601
076601
LEGRAND
1 Pcs.
MO-PULS EMERGE WITH 2M KEY
Mosaic emergency stop mushroom button. 2 modules. With key. Red and yellow color
Mosaic emergency stop mushroom button. 2mod. With key
Automation > Emergency stop complete
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Mosaic emergency stop mushroom button. 2 modules. With key. Complete device. NA + NC, 3A, 250 V~. Control mechanism for opening and closing circuits, coupling and locking by pressing on the handle and unlocking by key. Unlocking with RONIS key no. 455. By screw. Weight 73.6 gr. Button red and base yellow color. IK04, IP41, Polycarbonate base. Storage temperature -10º C to +70º C. Operating temperature -5º C to +50º C.
| Unlock Type | Decoupling by key |
|---|---|
| Number of Normally Closed Contacts | 1 |
| Number of contacts normally opened | 1 |
| Protection Class (IP) | IP41 |
| Type of mounting | Installation |
| With light | No |
| Hole diameter | 22.5 mm |
| Auxiliary Circuit Connection Type | Threaded connection |
| Width | 45 mm |
|---|---|
| Height | 45 mm |
| Depth | 73.3 mm |
| Impact resistance | IK04 |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Terminal capacity | 2.5-2.5 mm² |
| Feature Name | Feature Value |
|---|---|
| Connection type auxiliary circuit (EF006820) | Screw connection |
| With lighting (EF003829) | No |
| Degree of protection (IP) (EF005474) | IP41 |
| Mounting method (EF000003) | Built-in |
| Hole diameter (EF000079) | 22.5 mm |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Unlocking method (EF001403) | Key-release |
