View larger
Images are for illustrative purposes only. Please refer to data sheet for details

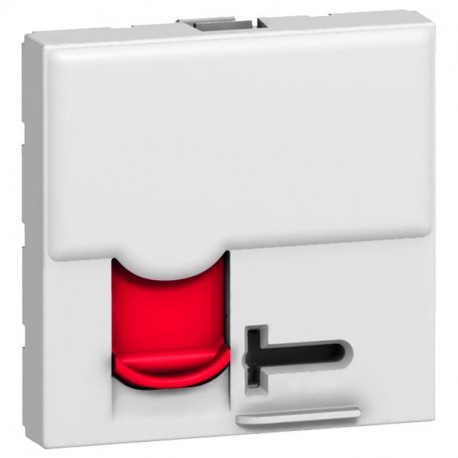

076594 LEGRAND MO-BASE RJ45 C6 UTP 2M BL SEC
076594
076594
LEGRAND
5 Pcs.
MO-BASE RJ45 C6 UTP 2M BL SEC
RJ 45 socket Mosaic - category 6 UTP + controlled access - 2 modules - white with red shutter
RJ45 Mosaic Base - Cat.6 - UTP - 2mod - Controlled Access - White
Automation > Data communication connection box copper (twisted pair)
RJ45 CONNECTORS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)5
- Volume (dm3)1.244
- Weight (g)155.00
Product characteristics
Cat. 6 RJ 45 socketsUTP with controlled access - 2 modules
- Supplied with 2 keys for 5 sockets
- White with red shutter
General characteristics
Mosaic™ Programme mechanisms - RJ 45 sockets - cat. 6A and 6- Can be integrated in all supports
- Contacts marked with dual colour code and wiring schemes T 568 A and T 568 B
- Conform to standards ISO/IEC 11801 Ed. 3.0, amendment 2, EN 50173-1 and TIA/EIA C
| Feature Name | Feature Value |
|---|---|
| Duct installation (EF002440) | Yes |
| With dust cover (EF003893) | Yes |
| Colour coding (EF007758) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| With label space (EF003456) | Yes |
| Shielded buses (EF002444) | No |
| Separate earthing connection (EF002500) | No |
| Connection type (EF000124) | Insulation displacement connector |
| Type of fastening (EF002442) | Engage (snap) |
| Floor box/subfloor mounted (EF003455) | Yes |
| Number of modules (module system) (EF009573) | 2 |
| RAL-number (EF000116) | 9003 |
| Type of connector (EF002935) | RJ45 8(8) |
| Surface mounting (EF003681) | No |
| Separate strain relief (EF002450) | No |
| Mounting method shielding connection (EF002497) | None |
| Device depth (EF008810) | 33.7 mm |
| With buses/couplings (EF005043) | Yes |
| Category (EF001619) | 6 |
| Device width (EF008808) | 45 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Device height (EF008809) | 45 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | White |
| Suitable for number of connectors (EF001579) | 1 |
| Flush-mounted installation (EF007517) | Yes |
