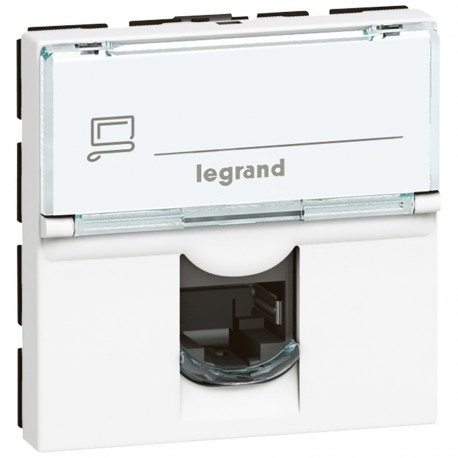

LEGRAND 076593 076593 LEGRAND MO-BASE RJ45 C6 STP 90D BL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

076593 LEGRAND MO-BASE RJ45 C6 STP 90D BL

076593

076593

LEGRAND

10 Pcs.

MO-BASE RJ45 C6 STP 90D BL Base RJ45 Mosaic - Cat.6 STP. 2 modules. LCS² metal shielding. At a 90º angle. White Base RJ45 Mosaic - Cat.6 STP. 2mod. LCS² metal armor. White

Automation > Data communication connection box copper (twisted pair)
RJ45 CONNECTORS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This product is a Legrand 076593 LEGRAND MO-BASE RJ45 C6 STP 90D BL, functioning as a shielded Category 6 network module featuring a 90-degree cable entry angle. Angled outlets optimize cable routing within confined spaces such as shallow trunking channels and floor boxes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Duct installation (EF002440): Yes
  • With dust cover (EF003893): Yes
  • Colour coding (EF007758): Yes
  • Degree of protection (IP) (EF005474): IP20
  • With label space (EF003456): Yes
  • Shielded buses (EF002444): Yes
  • Separate earthing connection (EF002500): No
  • Connection type (EF000124): Insulation displacement connector
  • Type of fastening (EF002442): Engage (snap)
  • Floor box/subfloor mounted (EF003455): Yes
  • Number of modules (module system) (EF009573): 2
  • RAL-number (EF000116): 9003
  • Type of connector (EF002935): RJ45 8(8)
  • Surface mounting (EF003681): No
  • Separate strain relief (EF002450): No
  • Device depth (EF008810): 39.5 mm

More info

▲
Category 6 RJ45 socket shielded STP. 2 modules. 90º inclination. Mosaic. White. The RJ45 Mosaic socket connects a device (PC, printer) to the local network (ISP router, switch). Cable distribution ensures a high-speed, secure, and reliable Internet connection. It is completed with a stand and plate. Cat 6 : Data transmission rate of up to 1 GigaBit/s. This allows you to download a 1 GigaByte file in 8 seconds. Supports high-capacity PoE applications. Power over Ethernet passes electrical power along with data into twisted-pair Ethernet cabling. Equipped with a transparent protective cover that protects the connector, and an integrated retractable cable to easily plug in your device. The arrangement of the clamping clips is specially designed for nestable columns or mini-columns and allows you to position the label space horizontally. Suitable for direct clipping columns and mini-columns. Suitable for commercial and residential installations. IP and analog phones. Very suitable for downloading, streaming, or online gaming that requires low latency. Tool-free connector with quick connection thanks to integrated crimping. Compatible with cables equipped with RJ11, RJ12 or RJ45 plugs. The slot system allows for perfect and easy placement of the multi-hook. The support frames can be perfectly joined thus facilitating installation. It can be installed in a normal recessed box (simple 40mm), without the need for additional cuts in the wall or wiring. It is strongly recommended if considering hooking the socket in columns or mini-columns to place the label space horizontally. Indoor use only. Conforms to ISO/IEC 11801 Ed. 3.0, EN 50173-1 and TIA/EIA 568 C.
Surface mountingNo
Flush mountingYes
Duct InstallationYes
Ground-mounted/underground boxYes
Attachment TypeLock in position
Type of mountingBasic element with center cover plate, Recessed mounted (plaster)
Connector TypeRJ45 8(8)
With sockets/couplingsYes
Suitable for the number of sockets/couplings1
category6
ColourWhite
RAL number9003
Connection MethodInsulation Displacement Connector
Shielded plugsYes
Separate grounding connectionNo
With text boxYes
Separate cable strain reliefNo
Shielding Connection Mount TypeOther
Exit AddressStraight
With dust protectionYes
Protection Class (IP)IP20
Color codingYes
Device width45 mm
Device height45 mm
Device Depth39.5 mm
Number of modules (in case of modular design)2
Installation Depth31 mm
Impact resistanceIK03
Operating Temperature-40-70 °C
Storage temperature-40-70 °C
Display of markings on the connection terminalsYes
Halogen-freeYes
Antibacterial treatmentNo
Tube diameter for wall-mounted product0-0 mm
Maximum cable entry diameter9 mm
Type of cable entry feedthroughsNot applicable
Distance between vertical clamping centers0-0 mm
Distance between horizontal clamping centers0-0 mm
Cable HolderNot applicable
