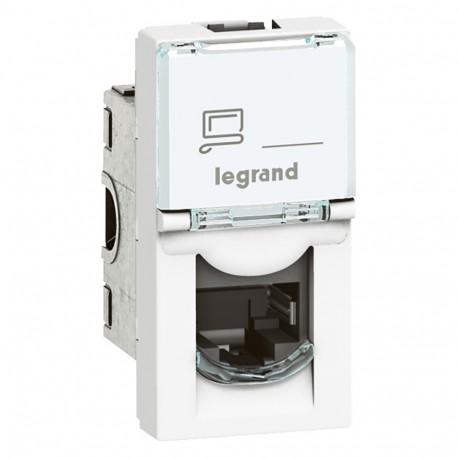

076584 LEGRAND MO-BASE RJ45 C6A STP 1M BL AB
076584
076584
LEGRAND
10 Pcs.
MO-BASE RJ45 C6A STP 1M BL AB
RJ 45 socket programme Mosaic - category 6 A STP - 1 module - white antimicrobial
RJ45 Mosaic Base - Cat.6A - STP - 1mod - LCS² - Antibacterial White
Automation > Data communication connection box copper (twisted pair)
RJ45 CONNECTORS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)10
- Volume (dm3)2.188
- Weight (g)426.00
Product characteristics
Cat. 6A RJ 45 sockets - MosaicSTP - 1 module
- 360° metal shielding
- White antimicrobial
General characteristics
Legrand cabling system, LCS³ cat. 6A - RJ 45 sockets - Mosaic™- Can be integrated in any support
- Mechanisms to be equipped with support frames and plates
- Equipped with connectors with quick toolless connection
- Take single-core cables from AWG 22 up to AWG 26, and AWG 26 multicore cables
- T568A and B marking with colour codes
- Compliant with ISO/IEC 11 801, EN 50173 and ANSI/TIA 568 standards
| Feature Name | Feature Value |
|---|---|
| Duct installation (EF002440) | Yes |
| With dust cover (EF003893) | Yes |
| Colour coding (EF007758) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| With label space (EF003456) | Yes |
| Shielded buses (EF002444) | Yes |
| Separate earthing connection (EF002500) | No |
| Connection type (EF000124) | Insulation displacement connector |
| Type of fastening (EF002442) | Engage (snap) |
| Floor box/subfloor mounted (EF003455) | Yes |
| Number of modules (module system) (EF009573) | 1 |
| RAL-number (EF000116) | 9003 |
| Type of connector (EF002935) | RJ45 8(8) |
| Surface mounting (EF003681) | No |
| Separate strain relief (EF002450) | No |
| Mounting method shielding connection (EF002497) | Other |
| Device depth (EF008810) | 46.5 mm |
| With buses/couplings (EF005043) | Yes |
| Category (EF001619) | 6A (IEC) |
| Device width (EF008808) | 22.5 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Device height (EF008809) | 45 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | White |
| Suitable for number of connectors (EF001579) | 1 |
| Flush-mounted installation (EF007517) | Yes |
