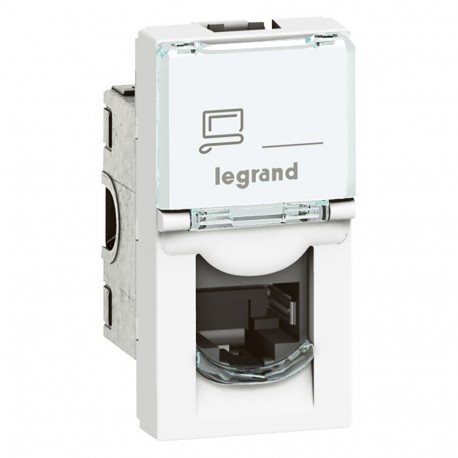

LEGRAND 076581 076581 LEGRAND MO-BASE RJ45 C6 UTP 1M BL AB View larger
Images are for illustrative purposes only. Please refer to data sheet for details

076581 LEGRAND MO-BASE RJ45 C6 UTP 1M BL AB

076581

076581

LEGRAND

10 Pcs.

MO-BASE RJ45 C6 UTP 1M BL AB RJ 45 socket Mosaic - category 6 UTP - 1 module - white antimicrobial RJ45 Mosaic Base - Cat.6 - UTP - 1mod - 8 contacts - LCS² - Antibact White

Automation > Data communication connection box copper (twisted pair)
RJ45 CONNECTORS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 076581 is an RJ45 Category 6 UTP modular connector base engineered for high-performance enterprise networks. Installers deploy these units within flush-mounted wall boxes and floor distribution systems to ensure dependable high-speed data transmission. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Duct installation (EF002440): Yes
  • With dust cover (EF003893): Yes
  • Colour coding (EF007758): Yes
  • Degree of protection (IP) (EF005474): IP20
  • With label space (EF003456): Yes
  • Shielded buses (EF002444): No
  • Separate earthing connection (EF002500): No
  • Connection type (EF000124): Insulation displacement connector
  • Type of fastening (EF002442): Engage (snap)
  • Floor box/subfloor mounted (EF003455): Yes
  • Number of modules (module system) (EF009573): 1
  • RAL-number (EF000116): 9003
  • Type of connector (EF002935): RJ45 8(8)
  • Surface mounting (EF003681): No
  • Separate strain relief (EF002450): No
  • Device depth (EF008810): 33.7 mm

More info

▲
  • Pack (number of units)10
  • Volume (dm3)2.189
  • Weight (g)182.00
Product characteristics
Cat. 6 RJ 45 sockets
UTP - 1 module
  • White antimicrobial
  • Contains a silver compound to prevent the growth of bacteria on the surface of the plate
General characteristics
Mosaic™ Programme mechanisms - RJ 45 sockets - cat. 6A and 6
  • Can be integrated in all supports
  • Contacts marked with dual colour code and wiring schemes T 568 A and T 568 B
  • Conform to standards ISO/IEC 11801 Ed. 3.0, amendment 2, EN 50173-1 and TIA/EIA C
