View larger
Images are for illustrative purposes only. Please refer to data sheet for details

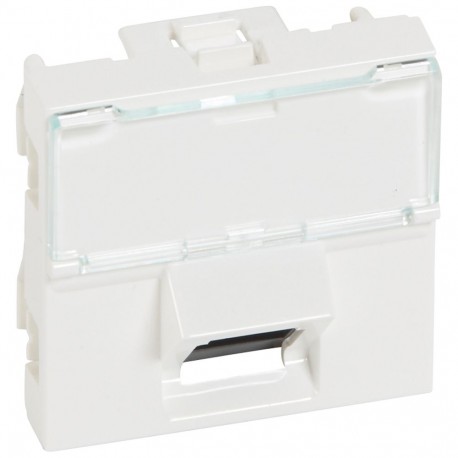

076501 LEGRAND MOSAIC RJ45 C5 UTP 2M 45D
076501
076501
LEGRAND
10 Pcs.
MOSAIC RJ45 C5 UTP 2M 45D
RJ45 socket inclined 45° category 5e UTP 2 modules Mosaic white
Automation > Data communication connection box copper (twisted pair)
RJ45 CONNECTORS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Surface mounting | No |
|---|---|
| Flush mounting | Yes |
| Duct Installation | Yes |
| Ground-mounted/underground box | Yes |
| Attachment Type | Lock in position |
| Type of mounting | Basic element with center cover plate, Recessed mounted (plaster) |
| Connector Type | RJ45 8(8) |
| With sockets/couplings | Yes |
| Suitable for the number of sockets/couplings | 1 |
| category | 5E |
| Colour | White |
| RAL number | 9003 |
| Connection Method | Insulation Displacement Connector |
| Shielded plugs | No |
| Separate grounding connection | No |
| With text box | Yes |
| Separate cable strain relief | No |
| Shielding Connection Mount Type | none |
| Exit Address | Inclined |
| With dust protection | No |
| Protection Class (IP) | IP20 |
|---|---|
| Color coding | Yes |
| Device width | 45 mm |
| Device height | 45 mm |
| Device Depth | 40.7 mm |
| Number of modules (in case of modular design) | 2 |
| Installation Depth | 25.1 mm |
| Impact resistance | IK03 |
| Operating Temperature | -40-70 °C |
| Storage temperature | -40-70 °C |
| Display of markings on the connection terminals | Yes |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Tube diameter for wall-mounted product | 0-0 mm |
| Maximum cable entry diameter | 9 mm |
| Type of cable entry feedthroughs | Not applicable |
| Distance between vertical clamping centers | 0-0 mm |
| Distance between horizontal clamping centers | 0-0 mm |
| Cable Holder | Not applicable |
| Feature Name | Feature Value |
|---|---|
| Duct installation (EF002440) | Yes |
| With dust cover (EF003893) | No |
| Colour coding (EF007758) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| With label space (EF003456) | Yes |
| Shielded buses (EF002444) | No |
| Separate earthing connection (EF002500) | No |
| Connection type (EF000124) | Insulation displacement connector |
| Type of fastening (EF002442) | Engage (snap) |
| Floor box/subfloor mounted (EF003455) | Yes |
| Number of modules (module system) (EF009573) | 2 |
| RAL-number (EF000116) | 9003 |
| Type of connector (EF002935) | RJ45 8(8) |
| Surface mounting (EF003681) | No |
| Separate strain relief (EF002450) | No |
| Mounting method shielding connection (EF002497) | None |
| Device depth (EF008810) | 40.7 mm |
| With buses/couplings (EF005043) | Yes |
| Category (EF001619) | 5E |
| Device width (EF008808) | 45 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Device height (EF008809) | 45 mm |
| Outlet direction (EF000323) | Inclined |
| Colour (EF000007) | White |
| Suitable for number of connectors (EF001579) | 1 |
| Flush-mounted installation (EF007517) | Yes |
