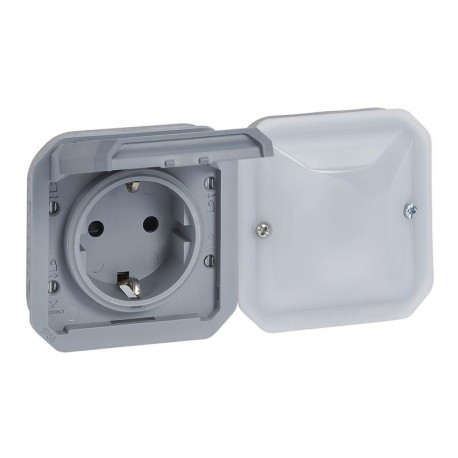

LEGRAND 069877L 069877L LEGRAND PLWN-COMP BASE 2P+T GREY View larger
Images are for illustrative purposes only. Please refer to data sheet for details

069877L LEGRAND PLWN-COMP BASE 2P+T GREY

069877L

069877L

LEGRAND

1 Pcs.

PLWN-COMP BASE 2P+T GREY Plexo with Netatmo modular connected power base - Gray Plexo modular connected power base w/Netatmo - Gray

Automation > Socket outlet

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 069877L is a surface mounted base socket designed for smart home integrations and automated electrical installations. It offers standard plug connections combined with wireless control protocol compatibility for modern building management.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Surface mounted
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwed terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 240 V
  • Number of modules (module system) (EF009573): 2
  • Compatible with Apple HomeKit (EF014925): Yes
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): Yes
  • Compatible with Google Assistant (EF014926): Yes
  • Number of ports USB-C (EF017049): 0
  • With hinged lid (EF000117): No
  • Number of ports USB-A (EF000997): 0

More info

▲

Overview

The connected power base allows you to control appliances through the Home + Ccontrol app as well as consumption tracking.

Product features
  • Plexo with Netatmo Power Base - Gray
  • IP55 - IK08
  • Overload protection
  • Can be paired with one or multiple wireless light switches
  • Compatible with the charging disconnect function
Recommendations / Restrictions
  • Screw terminal
  • The LED indicator function can be activated via the Home + Control app
description
The connected Plexo power base has an IP55 protection degree - It is compatible with all types of electrical equipment, especially household appliances - It incorporates additional protection in case of overloads above 16A - Allows the configuration of the sending of notifications (breakdown, excess consumption, etc.) - Uses the same wiring (phase and neutral) as a traditional power base - Installs in surface box or recessed frame - Requires the previous installation of a starter pack "with Netatmo" - Gray

specifications

Suitable for regulationNo
Push-button safeNo
Suitable for shutter switchesNo
Suitable for shutter switchNo
Suitable for blind/roller switchesNo
Switch SuitableNo
In housingYes
In the connection tube housingYes
With module/boardNo
Power supply230 V AC
Button ModeNo
Switching OperationYes
With handheld radio transmitterYes
With radio coding deviceNo
With wireless push buttonNo
Number of relays1
Type of mountingSurface mounted (plaster)
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishMate
Attachment TypeOther
ColourGrey
TransparentNo
Suitable for protection grade (IP)IP55
Degree of protection (NEMA)Other
Radio frequency2400 MHz
ModulationFM
Sequential Code SystemYes
Number of commands0
Compatible with Apple HomeKitYes
Compatible with Google AssistantYes
Compatible with Amazon AlexaYes
Compatible IFTTTNo
Width141.5 mm
Height70.5 mm
Depth50.5 mm
Installation Depth0 mm
Impact resistanceIK08
Operating Temperature5-45°C
Storage temperature0-45 °C
Standby consumption1.6 mA
Neutral MandatoryYes
Compliant with commissioning tests (1000 V)No
Antibacterial treatmentNo
Contains battery and/or accumulatorNo
Connected ObjectYes
Method of operationZigbee
App download platformApp Store, Google Play Store
Programming mediumSmartphone apps
ProgrammableYes
Connection Protocol InteroperabilityYes
With voice commandYes
Supported voice assistantsGoogle Assistant, Amazon Alexa, Apple Siri
App NameHome + Control
Product usage functionPower Distribution
Possibility of connection via Internet boxYes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
