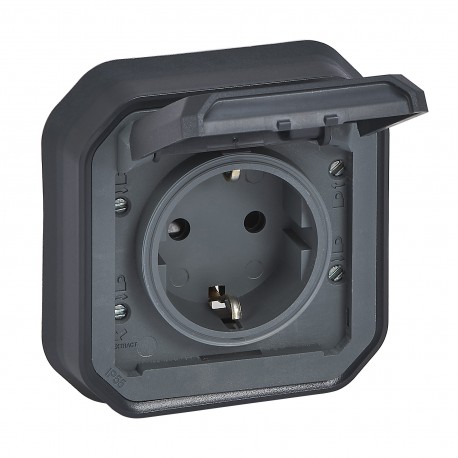

LEGRAND 069859L 069859L LEGRAND PL-MBL EMP 2P+T TOR ANT. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

069859L LEGRAND PL-MBL EMP 2P+T TOR ANT.

069859L

069859L

LEGRAND

10 Pcs.

PL-MBL EMP 2P+T TOR ANT. Plexo IP 55 - 16A - 2P+T monobloc recessed power base - screw terminal - anthracite Plexo monobloc recessed power base IP55 -16A-2P+T-terminal torn-Anthracite

Automation > Socket outlet

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Overview

Power base 2P+T 16A. For installation that needs protection against water and dust - IP55. Complete mechanism for flush-mounted installation

Product features
  • 2P+E power base with side ground contact - Screw terminal - Anthracite
  • 16 A - 250 V~ - IP55 - IK08
description
Recessed mechanism 2 poles+ground Plexo - monobloc - anthracite. Power bases - Gray - 16A - 250 V~ - 2P+T with side ground contact - Screw terminals. Plexus - Waterproof mechanisms IP 55 - recessed

Highlights

Advantages in installation
  • 1 reference = 1 complete mechanism ready to install

specifications

ModelCEE 7/3 socket (type F)
Protective contactOther
Number of active (round) contacts0
Number of active contacts (drawings)0
With signal lampNo
Number of USB-A ports0
Number of USB-C ports0
Number of Units1
Number of interchangeable sockets0
Number of phases1
Printing/MarkingProtection Type (IP)
Connection MethodScrew-on terminal
With flip-top lidYes
With enhanced contact protectionYes
ColourAnthracite
Metallic colorNo
TransparentNo
LockableNo
Expulsion mechanismNo
Isolated installationNo
With functional lightingNo
With adjustable lightingNo
Surge protectionNo
Residual Current DeviceNo
With microfusionNo
Special power supplyNo special power supply
Type of mountingRecessed mounted (plaster)
Attachment TypeScrew mounting
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishMate
Antibacterial treatmentNo
With loop functionNo
With on/off switchNo
Rotated center insertNo
Nominal Voltage250 V
frequency50-60 Hz
Suitable for protection grade (IP)IP55
Degree of protection (IP), plug connectedIP44
Device width85 mm
Device height85 mm
Device Depth48 mm
Impact resistanceIK08
Compatible with Apple HomeKitNo
Compatible with Amazon AlexaNo
Compatible with Google AssistantNo
Min. depth of the recessed box40 mm
With Wi-Fi signal repeaterNo
With built-in bluetooth speakerNo
Compatible IFTTTNo
For server conditions according to VDEYes
Installation Depth31 mm
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Type of voltageAC
Display of markings on the connection terminalsYes
PrewiredNo
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
Connected ObjectNo

ETIM for 069859L Domestic wiring accessories and controls (EC000125)
Feature Name Feature Value
Over voltage protection (EF001332) No
Nominal current (EF000001) 16 A
Rotated central insert (EF001331) No
Material quality (EF001257) Thermoplastic
Mounting method (EF000003) Flush mounted
Special power supply (EF001334) EV006426
Connection type (EF000124) Screwed terminal
Fault current protection (EF001333) No
Nominal voltage (EF000002) 250 V
Number of modules (module system) (EF009573) 2
Compatible with Apple HomeKit (EF014925) No
Eject-mechanism (EF001051) No
Compatible with Amazon Alexa (EF014927) No
Compatible with Google Assistant (EF014926) No
Number of ports USB-C (EF017049) 0
Min. depth of built-in installation box (EF012278) 40 mm
Imprint/indication (EF003823) Degree of protection (IP)
With hinged lid (EF000117) Yes
Number of ports USB-A (EF000997) 0
Metallic colour (EF015260) No
With Wi-Fi signal repeater (EF013509) No
Model (EF000010) Socket outlet CEE 7/3 (type F)
Number of socket outlets switchable (EF008814) 0
Suitable for degree of protection (IP) (EF006755) IP55
Device depth (EF008810) 48 mm
Impact strength (EF004293) IK08
Anti-bacterial treatment (EF023790) No
Number of active contacts (square) (EF017115) 0
Protective contact (EF017116) Other
Device width (EF008808) 85 mm
With on/off switch (EF000488) No
Device height (EF008809) 85 mm
Colour (EF000007) Anthracite
For heavy conditions according to VDE (EFDE0005) Yes
Number of active contacts (flat) (EF011999) 0
Number of active contacts (round) (EF011998) 2
Material (EF002169) Plastic
With orientation lighting (EF008862) No
Surface finishing (EF006569) Matt
Concurrently switching neutral conductor (EF005997) No
Halogen free (EF000025) Yes
Type of fastening (EF002442) Mounting with screw
With function lighting (EF008861) No
Transparent (EF006243) No
Insulated mounting (EF001588) No
Surface protection (EF000139) Untreated
Frequency (EF000416) 50 Hz
Number of phases (EF000351) 1
With signal lamp (EF000198) No
Lockable (EF000113) No
With built-in bluetooth speaker (EF016914) No
With miniature fuse (EF006571) No
IFTTT support available (EF011072) No
With enhanced contact protection (EF000389) Yes
With loop through function (EF006604) No
