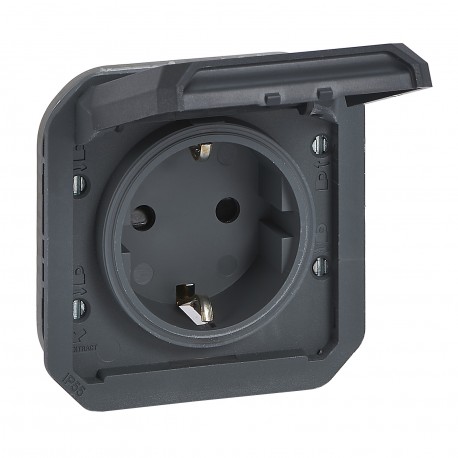

LEGRAND 069839L 069839L LEGRAND PL-COMP I/O 2P+T TORN ANT. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

069839L LEGRAND PL-COMP I/O 2P+T TORN ANT.

069839L

069839L

LEGRAND

10 Pcs.

PL-COMP I/O 2P+T TORN ANT. Plexo IP 55 Modular Power Base - 2P+T - Anthracite - Screw terminal Plexo modular power base IP55 -2P+T-terminal torn-Anthracite

Automation > Socket outlet

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A protected socket outlet featuring a hinged lid, item 069839L by Legrand, delivers secure electrical connections in environments exposed to moisture or debris. Outdoor and industrial-grade receptacles incorporate protective covers to safeguard internal contacts when not in use. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 16 A
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwed terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 2
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • Imprint/indication (EF003823): Degree of protection (IP)
  • With hinged lid (EF000117): Yes

More info

▲

Overview

Power base 2P+T 16A. For installation that needs protection against water and dust - IP55. Modular mechanism for surface or recessed installation.

Product features
  • 2P+E power base with side ground contact - Screw terminal - Anthracite
  • 16 A - 250 V~ - IP55 - IK08
description
Base 2 poles+modular ground Plexus - Anthracite. 16A power bases - 250 V~ - With 2P+T side earth contact - Terminal with screws - Gray - IP 55 watertight mechanisms - composable - power bases and differential bases - The mechanisms are supplied with finish front - Installation with surface boxes or with recessed support plates.

Highlights

Advantages in installation
  • Installation of the mechanism on the surface or recessed with box or frame

specifications

ModelCEE 7/3 socket (type F)
Protective contactOther
Number of active (round) contacts0
Number of active contacts (drawings)0
With signal lampNo
Number of USB-A ports0
Number of USB-C ports0
Number of Units1
Number of interchangeable sockets0
Number of phases1
Printing/MarkingProtection Type (IP)
Connection MethodScrew-on terminal
With flip-top lidYes
With enhanced contact protectionYes
ColourAnthracite
Metallic colorNo
TransparentNo
LockableNo
Expulsion mechanismNo
Isolated installationNo
With functional lightingNo
With adjustable lightingNo
Surge protectionNo
Residual Current DeviceNo
With microfusionNo
Special power supplyNo special power supply
Type of mountingOther
Attachment TypeScrew mounting
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishMate
Antibacterial treatmentNo
With loop functionNo
With on/off switchNo
Rotated center insertNo
Nominal Voltage250 V
frequency50-60 Hz
Suitable for protection grade (IP)IP55
Degree of protection (IP), plug connectedIP44
Impact resistanceIK08
Compatible with Apple HomeKitNo
Compatible with Amazon AlexaNo
Compatible with Google AssistantNo
Compatible IFTTTNo
With Wi-Fi signal repeaterNo
With built-in bluetooth speakerNo
For server conditions according to VDEYes
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Type of voltageAC
Display of markings on the connection terminalsYes
PrewiredNo
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
Connected ObjectNo
