View larger
Images are for illustrative purposes only. Please refer to data sheet for details

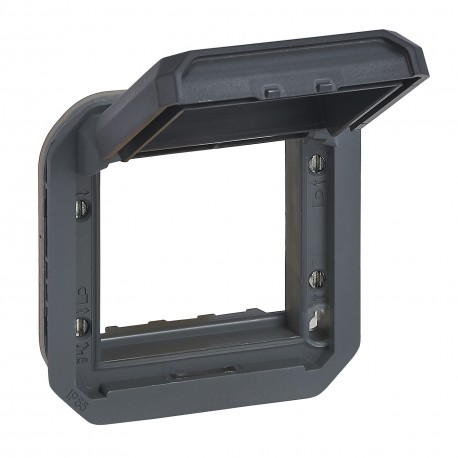

069830L LEGRAND PL-COMP ADAP MOS ANT OPAC CAP
069830L
069830L
LEGRAND
10 Pcs.
PL-COMP ADAP MOS ANT OPAC CAP
Plexo modular adapter for Mosaic function - Anthracite - opaque cap
Plexo modular adapter for Mosaic function - Opaque lid - Anthracite
Automation > Transition adapter for domestic switching devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Overview
Waterproof adapter with IP55 for installations that need protection against water and dust. Allows you to adapt all the Mosaic functions of 2 modules.
Product features
- Composable Plexo Adapter for Mosaic Function - Anthracite
- IP55 - IK08
- With lid
- Supports Mosaic 2 module mechanisms (RJ45 jack, phone jack, coded plug, ...) except special function.
- To be installed with a frame for flush-mounted installation or in a surface box
description
Mosaic Plexo Adapter - Anthracite - Composable - Plexo waterproof adapters - IP 55 - IK 08 - Allows to adapt all Mosaic functions 2 modules for use IP 55 - Opaque cover adapter - accessories.specifications
| Colour | Anthracite |
|---|---|
| RAL number (similar) | 7016 |
| With flip-top lid | Yes |
| With text box | No |
| Lockable | No |
| Dimensions | SQ70/SQ70 |
| Device width | 70.5 mm |
| Device height | 70.5 mm |
| Device Depth | 25 mm |
| Impact resistance | Not applicable |
|---|---|
| Protection Class (IP) | Not applicable |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Label Space/Print Area | No |
| Type of mounting | Other |
| Feature Name | Feature Value |
|---|---|
| RAL-number (similar) (EF003882) | 7016 |
| With label space (EF003456) | No |
| Lockable (EF000113) | No |
| Device depth (EF008810) | 25 mm |
| Device width (EF008808) | 70.5 mm |
| Device height (EF008809) | 70.5 mm |
| Dimensions (EF002567) | SQ70 / SQ70 |
| With hinged lid (EF000117) | Yes |
| Colour (EF000007) | Anthracite |
