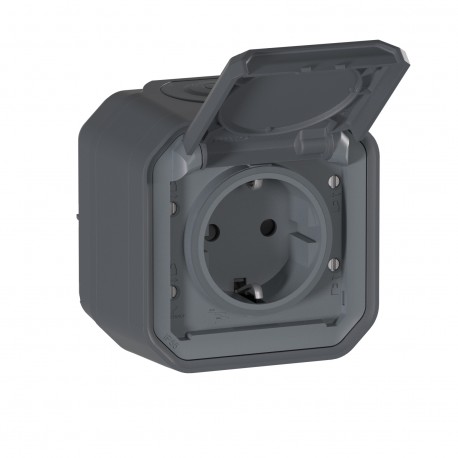

069784L LEGRAND PL-MBL SUP TOMA2P+T 16A BIC AN
069784L
069784L
LEGRAND
1 Pcs.
Automation > Socket outlet
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A surface mounted socket outlet, identified as part 069784L by Legrand, is engineered to supply electrical power directly on walls or structural panels where recessing is impractical. These interface units distribute power reliably to industrial tools and everyday appliances. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Over voltage protection (EF001332): No
- Nominal current (EF000001): 16 A
- Rotated central insert (EF001331): No
- Material quality (EF001257): Thermoplastic
- Mounting method (EF000003): Surface mounted
- Special power supply (EF001334): EV006426
- Connection type (EF000124): Screwless terminal
- Fault current protection (EF001333): No
- Nominal voltage (EF000002): 250 V
- Number of modules (module system) (EF009573): 2
- Compatible with Apple HomeKit (EF014925): No
- Eject-mechanism (EF001051): No
- Compatible with Amazon Alexa (EF014927): No
- Compatible with Google Assistant (EF014926): No
- Number of ports USB-C (EF017049): 0
- Min. depth of built-in installation box (EF012278): 0 mm
More info
▲Overview
Power base for charging Plexo electric bikes
Product features
- Plexo Power Base for Electric Bike Charging
- IP55 - IK08 - 16A - 250V
- With 1 membrane 2 outlets
- Automatic terminal
- With bicycle pictogram on the lid
description
Plexo base for charging electric bicycles - Monobloc - Anthracite - 16A - 250V - IP55 - IK08 - Automatic terminal - With protective cover - Supplied with 1 membrane and 2 outlets - Supplied without cable base - With bicycle pictogram on the lid - Surface installationHighlights
Advantages in installation
- 1 reference = 1 complete mechanism ready to install
specifications
| Model | Other |
|---|---|
| Neutral Conductor Coupling | No |
| Protective contact | Other |
| Number of active (round) contacts | 0 |
| Number of active contacts (drawings) | 0 |
| Number of active contacts (square) | 0 |
| With signal lamp | No |
| Number of USB-A ports | 0 |
| Number of USB-C ports | 0 |
| Number of Units | 1 |
| Number of modules (in case of modular design) | 2 |
| Number of interchangeable sockets | 0 |
| Number of phases | 1 |
| Printing/Marking | Other |
| Connection Method | Plug clamp |
| With flip-top lid | Yes |
| With enhanced contact protection | Yes |
| Label Space/Print Area | No |
| Colour | Anthracite |
| RAL number (similar) | 7016 |
| Metallic color | No |
| Transparent | No |
| Lockable | No |
| Expulsion mechanism | No |
| Isolated installation | No |
| With functional lighting | No |
| With adjustable lighting | No |
| Surge protection | No |
| Residual Current Device | No |
| With microfusion | No |
| Special power supply | No special power supply |
| Type of mounting | Surface mounted (plaster) |
| Attachment Type | Screw mounting |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | No treatment |
| Surface Finish | Mate |
|---|---|
| Antibacterial treatment | No |
| With loop function | No |
| With on/off switch | No |
| Rotated center insert | No |
| Nominal intensity | 16 A |
| Nominal Voltage | 250 V |
| frequency | 50-60 Hz |
| Suitable for protection grade (IP) | IP55 |
| Degree of protection (IP), plug connected | IP44 |
| Device width | 82 mm |
| Device height | 85 mm |
| Device Depth | 62 mm |
| Impact resistance | IK08 |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible IFTTT | No |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| Min. depth of the recessed box | 0 mm |
| Complies with UK Building Regulations, Part M | No |
| For server conditions according to VDE | No |
| Installation Depth | 0 mm |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Type of voltage | AC |
| Power Delivery | No |
| Display of markings on the connection terminals | Yes |
| Prewired | No |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Tube diameter for wall-mounted product | 16-25 mm |
| Cable Holder | Not applicable |
| Cover | Other |
| Connected Object | No |
