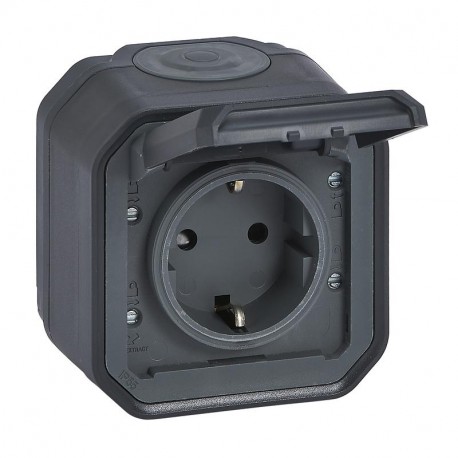

069783L LEGRAND PL-MBL SUP 2P+T TOR ANT.
069783L
069783L
LEGRAND
10 Pcs.
Automation > Socket outlet
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 069783L LEGRAND PL-MBL SUP 2P+T TOR ANT. is a surface-mounted socket outlet engineered to provide safe plug connections in locations where flush wall installation is not feasible. Surface receptacles provide durable power access points in industrial and commercial workspaces.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Over voltage protection (EF001332): No
- Nominal current (EF000001): 16 A
- Rotated central insert (EF001331): No
- Material quality (EF001257): Thermoplastic
- Mounting method (EF000003): Surface mounted
- Special power supply (EF001334): EV006426
- Connection type (EF000124): Screwed terminal
- Fault current protection (EF001333): No
- Nominal voltage (EF000002): 250 V
- Number of modules (module system) (EF009573): 2
- Compatible with Apple HomeKit (EF014925): No
- Eject-mechanism (EF001051): No
- Compatible with Amazon Alexa (EF014927): No
- Compatible with Google Assistant (EF014926): No
- Number of ports USB-C (EF017049): 0
- Imprint/indication (EF003823): Degree of protection (IP)
More info
▲Overview
Power base 2P+T 16A. For installation that needs protection against water and dust - IP55. Complete mechanism for surface installation.
Product features
- 2P+E power base with side ground contact - Screw terminal - Anthracite
- 16 A - 250 V~ - IP55 - IK08
description
Surface mechanism 2 poles+ground Plexo - monobloc - anthracite. Power bases - Gray - 16A - 250 V~ - 2P+T with side ground contact - Screw terminals. Plexus - IP 55 watertight mechanisms - surface - Supplied complete with 2 membranes - plate not fitted.Highlights
Advantages in installation
- 1 reference = 1 complete mechanism ready to install
specifications
| Model | CEE 7/3 socket (type F) |
|---|---|
| Protective contact | Other |
| Number of active (round) contacts | 0 |
| Number of active contacts (drawings) | 0 |
| With signal lamp | No |
| Number of USB-A ports | 0 |
| Number of USB-C ports | 0 |
| Number of Units | 1 |
| Number of interchangeable sockets | 0 |
| Number of phases | 1 |
| Printing/Marking | Protection Type (IP) |
| Connection Method | Screw-on terminal |
| With flip-top lid | Yes |
| With enhanced contact protection | Yes |
| Colour | Anthracite |
| Metallic color | No |
| Transparent | No |
| Lockable | No |
| Expulsion mechanism | No |
| Isolated installation | No |
| With functional lighting | No |
| With adjustable lighting | No |
| Surge protection | No |
| Residual Current Device | No |
| With microfusion | No |
| Special power supply | No special power supply |
| Type of mounting | Surface mounted (plaster) |
| Attachment Type | Screw mounting |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | No treatment |
|---|---|
| Surface Finish | Mate |
| Antibacterial treatment | No |
| With loop function | No |
| With on/off switch | No |
| Rotated center insert | No |
| Nominal Voltage | 250 V |
| frequency | 50-60 Hz |
| Suitable for protection grade (IP) | IP55 |
| Degree of protection (IP), plug connected | IP44 |
| Device width | 82 mm |
| Device height | 85 mm |
| Device Depth | 62 mm |
| Impact resistance | IK08 |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible IFTTT | No |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| For server conditions according to VDE | Yes |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Type of voltage | AC |
| Display of markings on the connection terminals | Yes |
| Prewired | No |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Tube diameter for wall-mounted product | 16-25 mm |
| Connected Object | No |
