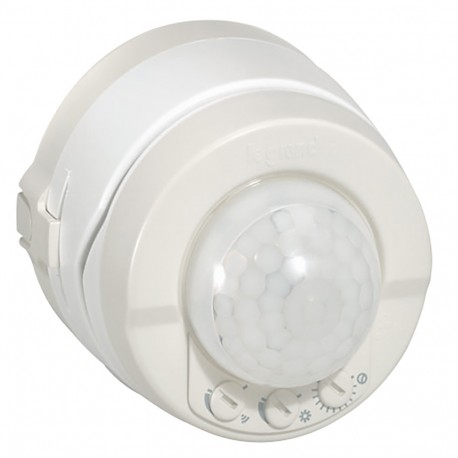

LEGRAND 069780 069780 LEGRAND DETECTOR BLANC IR WATERPROOF 360 ° View larger
Images are for illustrative purposes only. Please refer to data sheet for details

069780 LEGRAND DETECTOR BLANC IR WATERPROOF 360 °

069780

069780

LEGRAND

1 Pcs.

DETECTOR BLANC IR WATERPROOF 360 ° Movement detector Plexo IP55 - detection angle 360° - surface mounting - white 360° PIR detector - range 8/12m - ceiling/wall surface installation white

Automation > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)0.931
  • Weight (g)219.00
Product characteristics
Ideal for outdoor and humid areas
PIR IP 55 wall or ceiling-mounting motion sensors, 360°
  • With directional head, range Ø8 m
  • Fix directly to ceiling or wall (min. height: 1.70 m)
  • 3-wire with neutral
  • Light level threshold: 1 to 1000 lux
  • Adjustable time delay: 12 s to 16 min
  • Standby consumption: 0.9 W
  • Optimum distance between 2 sensors: 6 m
  • White
General characteristics
Motion sensors for 1 circuit - motion sensors for passage areas without natural light
  • Automatic on/off
  • Manual adjustment of light level threshold and time delay via potentiometer

ETIM for 069780 Domestic wiring accessories and controls (EC000133)
Feature Name Feature Value
Bridging switch (EF001099) Yes
Staircase light controller (EF001098) Yes
Material quality (EF001257) Thermoplastic
Mounting method (EF000003) Surface mounted
Min. switch-on time (EF006589) 12 s
Compatible with Apple HomeKit (EF014925) No
Detection angle horizontal (EF006582) 0 °
Compatible with Amazon Alexa (EF014927) No
Compatible with Google Assistant (EF014926) No
Networkable (EF003904) No
Response value sensitivity adjustable (EF003429) Yes
RAL-number (similar) (EF003882) 9016
Animal zone (EF006311) No
Model (EF000010) Movement sensor
With alarm function (EF005624) No
Optimum mounting height (EF008011) 2.5 m
Max. duty cycle (EF006590) 16 min
Anti-bacterial treatment (EF023790) No
With acoustic sensor (EF017675) No
Background monitoring (EF017674) No
Max. starting current (EF001732) 8.5 A
Connection cable length (EF003636) 0 mm
Temperature (EF001731) 0 °C
Substation input (EF003876) No
Colour (EF000007) White
With connection cable (EF005036) No
With signal unit (EF003890) Yes
Suitable for wireless transmission (EF001198) No
Degree of protection (IP) (EF005474) IP55
Material (EF002169) Plastic
Response value luminosity adjustable (EF007575) Yes
Voltage type (EF000187) AC
Surface finishing (EF006569) Glossy
Transparent (EF006243) No
Dim function with dimmer basic element (EF003808) No
Max. switching power (EF001503) 2000 W
Forced switch off (EF003920) No
Surface protection (EF000139) Untreated
Diameter reach on floor (EF003843) 6 m
Frequency (EF000416) 50 Hz
Remote operation (EF003848) No
Constant light control (EF003863) Yes
Nominal voltage (EF005127) 230 V
Max. reach sideways (EF001323) 4 m
Max. reach frontally (EF001322) 12 m
IFTTT support available (EF011072) No
Creep-under protection (EF000147) Yes
Teach-function for response value luminosity (EF003898) No
Response value luminosity (EF003814) 10 lx
HVAC-control (EF003858) No
