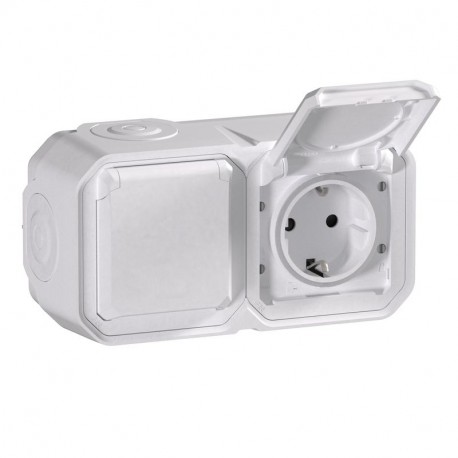

069772L LEGRAND PL-MBL SUP 2X2+T TOR HOR BL
069772L
069772L
LEGRAND
5 Pcs.
Automation > Socket outlet
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 069772L LEGRAND PL-MBL SUP 2X2+T TOR HOR BL is a surface-mounted power socket assembly engineered to provide robust electrical distribution in areas where recessed wiring is impractical. Surface-mounted units are widely deployed in industrial workshops, utility rooms, and surface raceway systems to facilitate easy equipment connection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Over voltage protection: No
- Nominal current: 16 A
- Rotated central insert: No
- Material quality: Thermoplastic
- Mounting method: Surface mounted
- Special power supply: EV006426
- Connection type: Screwless terminal
- Fault current protection: No
- Nominal voltage: 250 V
- Number of modules (module system): 4
- Compatible with Apple HomeKit: No
- Eject-mechanism: No
- Compatible with Amazon Alexa: No
- Compatible with Google Assistant: No
- Number of ports USB-C: 0
- Imprint/indication: Degree of protection (IP)
More info
▲Overview
Double current base 2P+T 16A. For installation that needs protection against water and dust - IP55. Complete mechanism for horizontal surface installation.
Product features
- Pre-wired power base - Screw terminal - Anthracite - Surface monobloc
- 16 A - 250 V~ - IP55 - IK08
- Horizontal installation
- Just one connection
- Automatic terminal
description
Plexo monobloc double mechanism 2 poles+vertical ground. Power bases - Gray - 16A - 250 V~~ - 2x2P+T with side ground contact - Automatic terminal - Horizontal mounting. Plexo - IP 55 watertight mechanisms - monobloc - surface - current bases - Supplied complete with 2 membranes - plate not fitted.Highlights
Advantages in installation
- 1 reference = 1 complete mechanism ready to install
specifications
| Model | CEE 7/3 socket (type F) |
|---|---|
| Protective contact | Other |
| Number of active (round) contacts | 0 |
| Number of active contacts (drawings) | 0 |
| With signal lamp | No |
| Number of USB-A ports | 0 |
| Number of USB-C ports | 0 |
| Number of Units | 2 |
| Number of interchangeable sockets | 0 |
| Number of phases | 1 |
| Printing/Marking | Protection Type (IP) |
| Connection Method | Plug clamp |
| With flip-top lid | Yes |
| With enhanced contact protection | Yes |
| Label Space/Print Area | No |
| Colour | White |
| RAL number (similar) | 9003 |
| Metallic color | No |
| Transparent | No |
| Lockable | No |
| Expulsion mechanism | No |
| Isolated installation | No |
| With functional lighting | No |
| With adjustable lighting | No |
| Surge protection | No |
| Residual Current Device | No |
| With microfusion | No |
| Special power supply | No special power supply |
| Type of mounting | Surface mounted (plaster) |
| Attachment Type | Screw mounting |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
|---|---|
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Antibacterial treatment | No |
| With loop function | No |
| With on/off switch | No |
| Rotated center insert | No |
| Nominal Voltage | 250 V |
| frequency | 50-60 Hz |
| Suitable for protection grade (IP) | IP55 |
| Degree of protection (IP), plug connected | IP44 |
| Device width | 155.55 mm |
| Device height | 84.5 mm |
| Device Depth | 61.55 mm |
| Impact resistance | IK08 |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible IFTTT | No |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| For server conditions according to VDE | Yes |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Type of voltage | AC |
| Display of markings on the connection terminals | Yes |
| Prewired | Yes |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Tube diameter for wall-mounted product | 16-25 mm |
| Connected Object | No |
