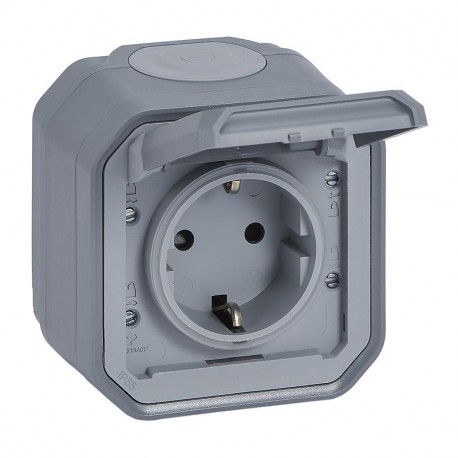

069733L LEGRAND PL-MBL SUP 2P+T TOR GREY
069733L
069733L
LEGRAND
10 Pcs.
Automation > Socket outlet
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 069733L PL-MBL SUP 2P+T TOR GREY surface mounted socket outlet provides dependable power distribution in utility spaces and external mounting environments. Enclosure-based wiring devices establish secure termination points for electrical circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Over voltage protection (EF001332): No
- Nominal current (EF000001): 16 A
- Rotated central insert (EF001331): No
- Material quality (EF001257): Thermoplastic
- Mounting method (EF000003): Surface mounted
- Special power supply (EF001334): EV006426
- Connection type (EF000124): Screwed terminal
- Fault current protection (EF001333): No
- Nominal voltage (EF000002): 250 V
- Number of modules (module system) (EF009573): 2
- Compatible with Apple HomeKit (EF014925): No
- Eject-mechanism (EF001051): No
- Compatible with Amazon Alexa (EF014927): No
- Compatible with Google Assistant (EF014926): No
- Number of ports USB-C (EF017049): 0
- Imprint/indication (EF003823): Degree of protection (IP)
More info
▲Overview
Power base 2P+T 16A. For installation that needs protection against water and dust - IP55. Complete mechanism for surface installation.
Product features
- 2P+E power base with side earth contact - Screw terminal - Gray
- 16 A - 250 V~ - IP55 - IK08
description
Surface mechanism 2 poles+ground Plexo - monobloc - gray. Power bases - Gray - 16A - 250 V~ - 2P+T with side ground contact - Screw terminals. Plexus - IP 55 watertight mechanisms - surface - Supplied complete with 2 membranes - plate not fitted.Highlights
Advantages in installation
- 1 reference = 1 complete mechanism ready to install
specifications
| Model | CEE 7/3 socket (type F) |
|---|---|
| Protective contact | Other |
| Number of active (round) contacts | 0 |
| Number of active contacts (drawings) | 0 |
| With signal lamp | No |
| Number of USB-A ports | 0 |
| Number of USB-C ports | 0 |
| Number of Units | 1 |
| Number of interchangeable sockets | 0 |
| Number of phases | 1 |
| Printing/Marking | Protection Type (IP) |
| Connection Method | Screw-on terminal |
| With flip-top lid | Yes |
| With enhanced contact protection | Yes |
| Label Space/Print Area | No |
| Colour | Grey |
| RAL number (similar) | 7046 |
| Metallic color | No |
| Transparent | No |
| Lockable | No |
| Expulsion mechanism | No |
| Isolated installation | No |
| With functional lighting | No |
| With adjustable lighting | No |
| Surge protection | No |
| Residual Current Device | No |
| With microfusion | No |
| Special power supply | No special power supply |
| Type of mounting | Surface mounted (plaster) |
| Attachment Type | Screw mounting |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
|---|---|
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Antibacterial treatment | No |
| With loop function | No |
| With on/off switch | No |
| Rotated center insert | No |
| Nominal Voltage | 250 V |
| frequency | 50-60 Hz |
| Suitable for protection grade (IP) | IP55 |
| Degree of protection (IP), plug connected | IP44 |
| Device width | 82 mm |
| Device height | 85 mm |
| Device Depth | 62 mm |
| Impact resistance | IK08 |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible IFTTT | No |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| For server conditions according to VDE | Yes |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Type of voltage | AC |
| Display of markings on the connection terminals | Yes |
| Prewired | No |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Tube diameter for wall-mounted product | 16-25 mm |
| Connected Object | No |
