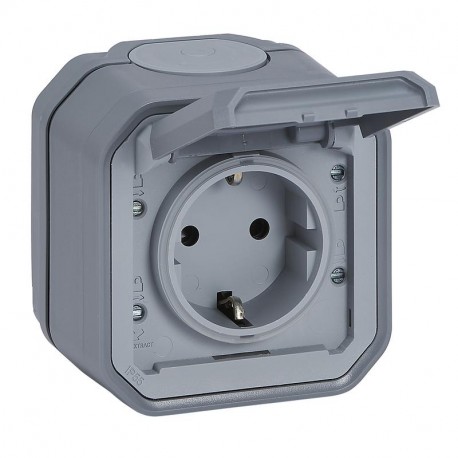

LEGRAND 069730L 069730L LEGRAND PL-MBL SUP 2P+T AUT GREY View larger
Images are for illustrative purposes only. Please refer to data sheet for details

069730L LEGRAND PL-MBL SUP 2P+T AUT GREY

069730L

069730L

LEGRAND

10 Pcs.

PL-MBL SUP 2P+T AUT GREY Plexo IP 55 - 16A - 2P+T surface monobloc power base - automatic terminal - gray Plexo monobloc surface power base IP55 -16A-2P+T-terminal auto-Gray

Automation > Socket outlet

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 069730L surface-mounted power socket supplies rugged electrical connectivity designed for wall installations in commercial and industrial settings. This hardware delivers safe, dependable power routing for connected tools and devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 16 A
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Surface mounted
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwless terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 2
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • Min. depth of built-in installation box (EF012278): 0 mm

More info

▲

Overview

Power base 2P+T 16A. For installation that needs protection against water and dust - IP55. Complete mechanism for surface installation.

Product features
  • 2P+E power base with side earth contact - Automatic terminal - Grey
  • 16 A - 250 V~ - IP55 - IK08
description
Surface mechanism 2 poles+ground Plexo - monobloc - gray. Power bases - Gray - 16A - 250 V~ - 2P+T with side earth contact - Automatic terminal . Plexus - IP 55 watertight mechanisms - surface - Supplied complete with 2 membranes - plate not fitted.

Highlights

Advantages in installation
  • 1 reference = 1 complete mechanism ready to install

specifications

ModelCEE 7/3 socket (type F)
Protective contactOther
Number of active (round) contacts0
Number of active contacts (drawings)0
Number of active contacts (square)0
With signal lampNo
Number of USB-A ports0
Number of USB-C ports0
Number of Units1
Number of modules (in case of modular design)2
Number of interchangeable sockets0
Number of phases1
Printing/MarkingProtection Type (IP)
Connection MethodPlug clamp
With flip-top lidYes
With enhanced contact protectionYes
Label Space/Print AreaNo
ColourGrey
RAL number (similar)7046
Metallic colorNo
TransparentNo
LockableNo
Expulsion mechanismNo
Isolated installationNo
With functional lightingNo
With adjustable lightingNo
Surge protectionNo
Residual Current DeviceNo
With microfusionNo
Special power supplyNo special power supply
Type of mountingSurface mounted (plaster)
Attachment TypeScrew mounting
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishMate
Antibacterial treatmentNo
With loop functionNo
With on/off switchNo
Rotated center insertNo
Nominal intensity16 A
Nominal Voltage250 V
frequency50-60 Hz
Suitable for protection grade (IP)IP55
Degree of protection (IP), plug connectedIP44
Device width82 mm
Device height85 mm
Device Depth62 mm
Impact resistanceIK08
Compatible with Apple HomeKitNo
Compatible with Amazon AlexaNo
Compatible with Google AssistantNo
Compatible IFTTTNo
With Wi-Fi signal repeaterNo
With built-in bluetooth speakerNo
Min. depth of the recessed box0 mm
Complies with UK Building Regulations, Part MNo
For server conditions according to VDEYes
Installation Depth0 mm
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Type of voltageAC
Display of markings on the connection terminalsYes
PrewiredNo
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
Tube diameter for wall-mounted product16-25 mm
Cable HolderNot applicable
Connected ObjectNo
