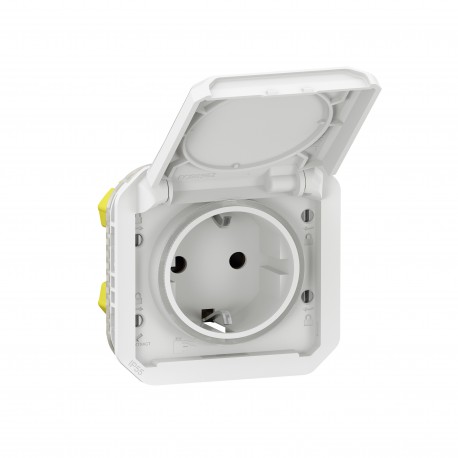

LEGRAND 069640L 069640L LEGRAND PL-COMP I/O 2P+T AUT BLAN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

069640L LEGRAND PL-COMP I/O 2P+T AUT BLAN

069640L

069640L

LEGRAND

10 Pcs.

PL-COMP I/O 2P+T AUT BLAN Plexo IP 55 Modular Power Base - 2P+T - White - Automatic terminal Plexo modular power base IP55 -2P+T-terminal auto-White

Automation > Socket outlet

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 069640L LEGRAND PL-COMP I/O 2P+T AUT BLAN power socket outlet is engineered for secure surface or flush installation, providing reliable electrical access in various commercial environments. Such sockets form a fundamental part of building wiring networks, distributing current safely to end-use devices. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 16 A
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwless terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 2
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • Imprint/indication (EF003823): Degree of protection (IP)
  • With hinged lid (EF000117): Yes

More info

▲

Overview

Power base 2P+T 16A. For installation that needs protection against water and dust - IP55. Modular mechanism for surface or recessed installation.

Product features
  • 2P+E power base with side earth contact - Automatic terminal - White - Modular
  • 16 A - 250 V~ - IP55 - IK08
  • 2P+T Ground Side Contact
  • Automatic terminal
description
Base 2 poles+modular ground Plexo - White. Power bases 16A - 250 V~ - With side earth contact 2P+T - Automatic terminal - Gray - IP 55 watertight mechanisms - composable - current bases and differential bases - The mechanisms are supplied with finish front - Installation with surface boxes or with recessed support plates.

Highlights

Advantages in installation
  • Installation of the mechanism on the surface or recessed with box or frame

specifications

ModelCEE 7/3 socket (type F)
Protective contactOther
Number of active (round) contacts0
Number of active contacts (drawings)0
With signal lampNo
Number of USB-A ports0
Number of USB-C ports0
Number of Units1
Number of interchangeable sockets0
Number of phases1
Printing/MarkingProtection Type (IP)
Connection MethodPlug clamp
With flip-top lidYes
With enhanced contact protectionYes
Label Space/Print AreaNo
ColourWhite
RAL number (similar)9003
Metallic colorNo
TransparentNo
LockableNo
Expulsion mechanismNo
Isolated installationNo
With functional lightingNo
With adjustable lightingNo
Surge protectionNo
Residual Current DeviceNo
With microfusionNo
Special power supplyNo special power supply
Type of mountingOther
Attachment TypeScrew mounting
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishMate
Antibacterial treatmentNo
With loop functionNo
With on/off switchNo
Rotated center insertNo
Nominal Voltage250 V
frequency50-60 Hz
Suitable for protection grade (IP)IP55
Degree of protection (IP), plug connectedIP44
Device width70.5 mm
Device height70.5 mm
Device Depth48 mm
Impact resistanceIK08
Compatible with Apple HomeKitNo
Compatible with Amazon AlexaNo
Compatible with Google AssistantNo
Compatible IFTTTNo
With Wi-Fi signal repeaterNo
With built-in bluetooth speakerNo
For server conditions according to VDEYes
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Type of voltageAC
Display of markings on the connection terminalsYes
PrewiredNo
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
Connected ObjectNo
