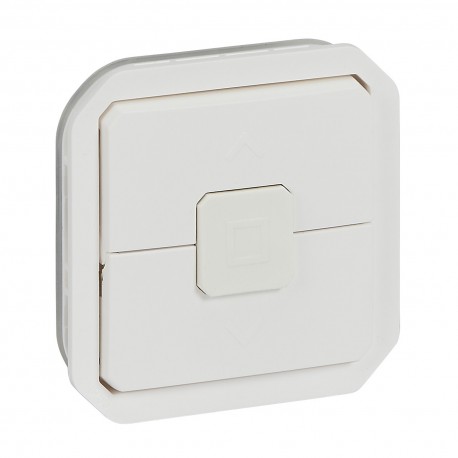

069638L LEGRAND PL-COMP I/O PULS PERS 10A BL
069638L
069638L
LEGRAND
1 Pcs.
Automation > Venetian blind switch/-push button
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An input/output personal push button switch, designated as part number 069638L by Legrand, provides momentary contact switching for dedicated automation tasks. These components are typically integrated into control panels or wall boxes to trigger specific operational sequences or safety overrides in electrical systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mechanical controllable (EF005993): Yes
- Label space/information surface (EF001035): No
- Material (EF002169): Plastic
- Surface finishing (EF006569): Matt
- Type of fastening (EF002442): Mounting with screw
- Halogen free (EF000025): Yes
- Material quality (EF001257): Thermoplastic
- Connection type (EF000124): Screwless terminal
- Nominal voltage (EF000002): 250 V
- Transparent (EF006243): No
- Compatible with Apple HomeKit (EF014925): No
- Compatible with Amazon Alexa (EF014927): No
- Compatible with Google Assistant (EF014926): No
- Number of poles (EF001391): 1
- Surface protection (EF000139): Untreated
- Built-in depth (EF000218): 34.5 mm
More info
▲Overview
The double push button allows you to control blinds from a place that needs protection against water and dust. Protection degree: IP55. Composable product.
Product features
- Double push button for Plexo blinds - composable - Gray
- IP55 - IK06
- 10A - 250V
- To control by electronic box
- To be installed with a frame for flush-mounted installation or in a surface box
description
Plexo modular shutter push button - White. Shutter controls - IP 55 - IK 06 - Double push button - For control by electronic box - 6A - 250V - 500W max. - composable - emergency cut, beacon, blinds, thermostat.Highlights
Advantages in installation
- Roller Shutter Command
specifications
| Type of mounting | Basic Element with Center Cover Plate, Others |
|---|---|
| Model | Other |
| Number of poles | 1 |
| Type of operation | Other |
| Mechanically Driven | Yes |
| Electronically operated | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Attachment Type | Screw mounting |
| Connection Method | Plug clamp |
| Colour | White |
| RAL number (similar) | 9003 |
| Transparent | No |
| Label Space/Print Area | No |
| Suitable for protection grade (IP) | IP55 |
| Nominal current | 6 A |
| Nominal Voltage | 250 V |
| Number of buttons | 3 |
| Device width | 70.5 mm |
|---|---|
| Device height | 70.5 mm |
| Device Depth | 40 mm |
| Installation Depth | 34.5 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Impact resistance | IK07 |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Lighting Type | Not applicable |
| Display of markings on the connection terminals | Yes |
| Antibacterial treatment | No |
| Number of terminals | 3 |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Contains battery and/or accumulator | No |
