View larger
Images are for illustrative purposes only. Please refer to data sheet for details

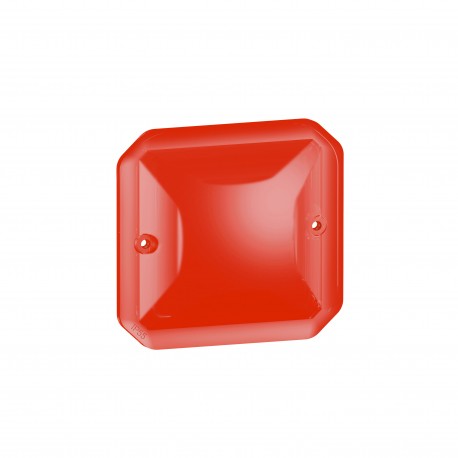

069591L LEGRAND PL-COMP I/O DIFFUSER RED
069591L
069591L
LEGRAND
5 Pcs.
PL-COMP I/O DIFFUSER RED
Modular Plexus Red Diffuser
Plexo Modular Diffuser - Red
Automation > Control element/cover plate for domestic switching devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Overview
Diffuser for the Plexo beacon pilot.
Product features
- Composable Plexo beacon pilot diffuser
- IP55 - IK08
- Red
description
Red Plexus Pilot Diffuser. Beaconing and signalling - IP 55 - IK 08 Lamp diffusers - Colorless. Plexo - IP 55 watertight mechanisms - composable - emergency cut-off, beacon, blinds, thermostat.Highlights
Advantages in use
- Signage
specifications
| Model | Other |
|---|---|
| Tangible/barrier-free symbol | No |
| Use | Signpost |
| Suitable for connection of bus system pushbuttons | No |
| Attachment Type | Thread fastening |
| Light Output/Control Window | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | No treatment |
| Surface Finish | Bright |
| Antibacterial treatment | No |
|---|---|
| Colour | Red |
| With label area | No |
| Suitable for protection grade (IP) | IP55 |
| Impact resistance | IK07 |
| Width | 70.5 mm |
| Height | 70.5 mm |
| Depth | 25 mm |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 70.5 mm |
| Model (EF000010) | Other |
| Suitable for touch sensor connector for bus system (EF007802) | No |
| Material (EF002169) | Plastic |
| Utilization (EF000133) | Signalling |
| Monitoring window/light outlet (EF003864) | Yes |
| Surface finishing (EF006569) | Glossy |
| Type of fastening (EF002442) | Screw mounting |
| Suitable for degree of protection (IP) (EF006755) | IP55 |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| With label area (EF005040) | No |
| Scannable symbol/barrier free (EF012306) | No |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK08 |
| Depth (EF000049) | 25 mm |
| Colour (EF000007) | Red |
| Surface protection (EF000139) | Untreated |
| Width (EF000008) | 70.5 mm |
