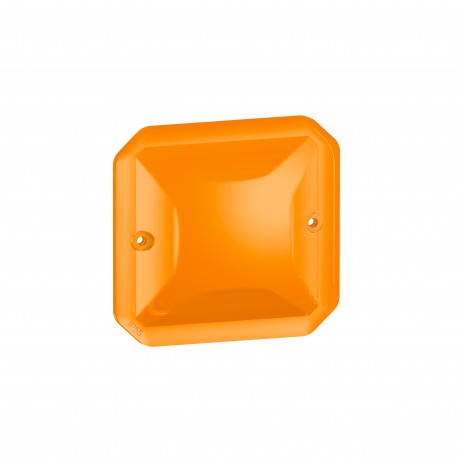

LEGRAND 069590L 069590L LEGRAND PL-COMP I/O ORANGE DIFFUSER View larger
Images are for illustrative purposes only. Please refer to data sheet for details

069590L LEGRAND PL-COMP I/O ORANGE DIFFUSER

069590L

069590L

LEGRAND

5 Pcs.

PL-COMP I/O ORANGE DIFFUSER Plexo modular orange diffuser Plexo Modular Diffuser - Orange

Automation > Control element/cover plate for domestic switching devices

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This is a 069590L LEGRAND PL-COMP I/O ORANGE DIFFUSER signalling component produced by Legrand. Diffusers and optical lenses are routinely integrated into industrial control panels to enhance visual status indication and protect internal pilot lights.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 70.5 mm
  • Material (EF002169): Plastic
  • Utilization (EF000133): Signalling
  • Monitoring window/light outlet (EF003864): Yes
  • Surface finishing (EF006569): Glossy
  • Type of fastening (EF002442): Screw mounting
  • Suitable for degree of protection (IP) (EF006755): IP55
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • With label area (EF005040): No
  • Scannable symbol/barrier free (EF012306): No
  • Anti-bacterial treatment (EF023790): No
  • Impact strength (EF004293): IK08
  • Depth (EF000049): 25 mm
  • Colour (EF000007): Orange
  • Surface protection (EF000139): Untreated

More info

▲

Overview

Diffuser for the Plexo beacon pilot.

Product features
  • Composable Plexo beacon pilot diffuser
  • IP55 - IK08
  • Orange
description
Pilot Diffuser Plexus orange. Beaconing and signalling - IP 55 - IK 08 Lamp diffusers - Colorless. Plexo - IP 55 watertight mechanisms - composable - emergency cut-off, beacon, blinds, thermostat.

Highlights

Advantages in use
  • Signage

specifications

ModelOther
Tangible/barrier-free symbolNo
UseSignpost
Suitable for connection of bus system pushbuttonsNo
Attachment TypeThread fastening
Light Output/Control WindowYes
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishBright
Antibacterial treatmentNo
ColourOrange
With label areaNo
Suitable for protection grade (IP)IP55
Impact resistanceIK07
Width70.5 mm
Height70.5 mm
Depth25 mm
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
