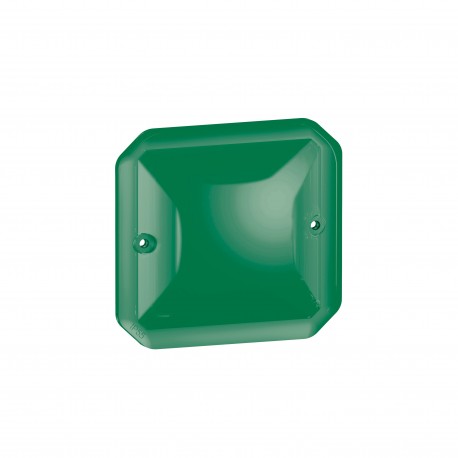

LEGRAND 069589L 069589L LEGRAND PL-COMP I/O GREEN DIFFUSER View larger
Images are for illustrative purposes only. Please refer to data sheet for details

069589L LEGRAND PL-COMP I/O GREEN DIFFUSER

069589L

069589L

LEGRAND

5 Pcs.

PL-COMP I/O GREEN DIFFUSER Green diffuser Plexo modular Plexo Modular Diffuser - Green

Automation > Control element/cover plate for domestic switching devices

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as an industrial signaling component, the 069589L LEGRAND PL-COMP I/O GREEN DIFFUSER by Legrand provides visual status indication and pilot light diffusion on control panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 70.5 mm
  • Material (EF002169): Plastic
  • Utilization (EF000133): Signalling
  • Monitoring window/light outlet (EF003864): Yes
  • Surface finishing (EF006569): Glossy
  • Type of fastening (EF002442): Screw mounting
  • Suitable for degree of protection (IP) (EF006755): IP55
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • With label area (EF005040): No
  • Scannable symbol/barrier free (EF012306): No
  • Anti-bacterial treatment (EF023790): No
  • Impact strength (EF004293): IK08
  • Depth (EF000049): 25 mm
  • Colour (EF000007): Green
  • Surface protection (EF000139): Untreated

More info

▲

Overview

Diffuser for the Plexo beacon pilot.

Product features
  • Composable Plexo beacon pilot diffuser
  • IP55 - IK08
  • Green
description
Green Plexus Pilot Diffuser. Beaconing and signalling - IP 55 - IK 08 Lamp diffusers - Colorless. Plexo - IP 55 watertight mechanisms - composable - emergency cut-off, beacon, blinds, thermostat.

Highlights

Advantages in use
  • Signage

specifications

ModelOther
Tangible/barrier-free symbolNo
UseSignpost
Suitable for connection of bus system pushbuttonsNo
Attachment TypeThread fastening
Light Output/Control WindowYes
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishBright
Antibacterial treatmentNo
ColourGreen
With label areaNo
Suitable for protection grade (IP)IP55
Impact resistanceIK07
Width70.5 mm
Height70.5 mm
Depth25 mm
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
