View larger
Images are for illustrative purposes only. Please refer to data sheet for details

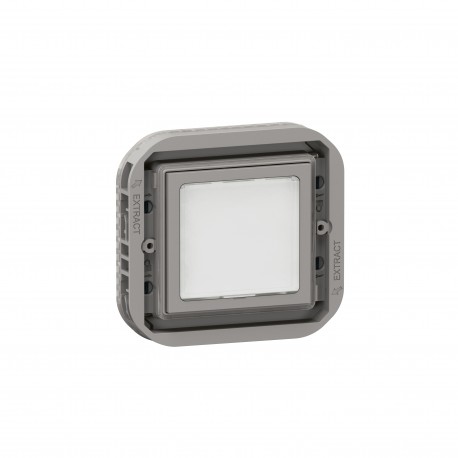

069583L LEGRAND PL-COMP BEACON PILOT I/O
069583L
069583L
LEGRAND
10 Pcs.
PL-COMP BEACON PILOT I/O
Plexo modular gray/white beacon pilot - for E10 lamp - 230 V
Plexo modular beacon pilot for E10 lamp - 230V - Gray/White
Automation > Information light signal for domestic switching devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Overview
Plexo pilot that allows beacon lighting such as a corridor, a staircase... For installation requiring protection against water and dust.
Product features
- Composable Plexo Signal Pilot - Grey/White
- IP55 - IK08
- 2 power levels available (0.2W or 1W
- Screw terminal
- Supports diffuser references 0 695 88L/89L/90L/91L
description
Modular PLEXO signaling light. Beaconing and signaling - IP 55 - IK 08 pilot - Mechanism that integrates the LEDs - 2 available power levels (0.2W or 1W) - Terminal with screws - Compatible with diffusers ref. 0 695 88L/89L/90L/91L - Gray/White. Plexo - IP 55 watertight mechanisms - composable - emergency cut-off, beacon, blinds, thermostat.Highlights
Advantages in use
- Signage
specifications
| Type of mounting | Other , Other |
|---|---|
| Lamp holder | none |
| With light source | Yes |
| Lamp | Non-interchangeable LED |
| With flashing light | No |
| With fixed symbol/printing | No |
| With interchangeable symbol | No |
| Can be used as a pushbutton | No |
| Attachment Type | Thread fastening |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Colour | Grey |
| RAL number (similar) | 7040 |
| Transparent | No |
| Lamp color | White |
| Suitable for protection grade (IP) | IP55 |
| Nominal Voltage | 230 V |
|---|---|
| Lamp power max. | 1 W |
| Device width | 68.5 mm |
| Device height | 68.5 mm |
| Device Depth | 41.2 mm |
| Impact resistance | IK07 |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | Yes |
| Antibacterial treatment | No |
| Connection Method | Screw-on terminal |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Label Space/Print Area | No |
| Feature Name | Feature Value |
|---|---|
| Max. lamp power (EF000260) | 1 W |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Lamp type (EF002423) | LED non-replaceable |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Type of fastening (EF002442) | Screw mounting |
| Mounting method (EF000003) | Other |
| Nominal voltage (EF000002) | 230 V |
| Transparent (EF006243) | No |
| Colour light source (EF001402) | White |
| Surface protection (EF000139) | Untreated |
| With light source (EF005905) | Yes |
| With fixed symbol/imprint (EF007949) | No |
| RAL-number (similar) (EF003882) | 7040 |
| With flashlight (EF006575) | No |
| Suitable for degree of protection (IP) (EF006755) | IP55 |
| Device depth (EF008810) | 41.2 mm |
| Device width (EF008808) | 68.5 mm |
| Assembly arrangement (EF000005) | Other |
| Application as button (EF003912) | No |
| Device height (EF008809) | 68.5 mm |
| Lamp holder (EF000048) | None |
| Colour (EF000007) | Grey |
| With exchangeable symbol (EF006748) | No |
