View larger
Images are for illustrative purposes only. Please refer to data sheet for details

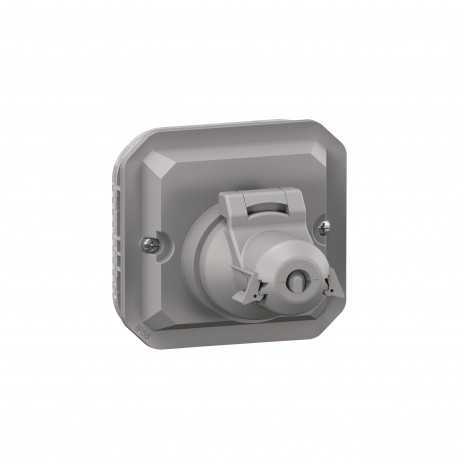

069581L LEGRAND PL-COMP ADAP RJ45 W/GR CAP
069581L
069581L
LEGRAND
1 Pcs.
PL-COMP ADAP RJ45 W/GR CAP
Plexo modular adapter for Mosaic function - for RJ bases- IP 44
Plexo modular adapter for Mosaic function - RJ45 Bases - Gray
Automation > Insert/cover for communication technology
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Overview
Plexo waterproof adapter for RJ 45 sockets that need an installation with IP44.
Product features
- Composable Plexo Adapter for RJ 45 Base
- For RJ45 base
- Receives the 2-module Mosaic mechanisms (RJ45 jack, phone jack, coded plug,...) without support, except for the special socket
- To be installed with bracket bracket for flush-mounted installation in a box or with a surface box
- Grey
description
Adapter for RJ 45 Plexo socket. Plexo waterproof adapters - Guarantees watertightness (IP 44) connected plug - composable - accessories.Highlights
Advantages in use
- Ensures IP44 watertightness
specifications
| Type of mounting | Other , Other |
|---|---|
| Use | Other |
| Carrier Ring | No |
| With dust protection | Yes |
| With flip-top lid | No |
| Exit Address | Straight |
| With printing | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Colour | Grey |
| RAL number (similar) | 7046 |
| Transparent | No |
| Attachment Type | Screw mounting |
|---|---|
| With sockets/couplings | No |
| With voltage relief | Yes |
| Shielded plugs | No |
| Shielded housing | No |
| Spider Clamp | No |
| With light | No |
| Suitable for protection grade (IP) | IP55 |
| Impact resistance | IK07 |
| Device width | 70.5 mm |
| Device height | 70.5 mm |
| Device Depth | 60 mm |
| Installation Depth | 14 mm |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Feature Name | Feature Value |
|---|---|
| With dust cover (EF003893) | Yes |
| Material (EF002169) | Plastic |
| Shielded buses (EF002444) | No |
| Surface finishing (EF006569) | Matt |
| Shielded housing (EF002445) | No |
| Type of fastening (EF002442) | Mounting with screw |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Other |
| With imprint (EF004048) | No |
| Transparent (EF006243) | No |
| With lighting (EF003829) | No |
| Luster terminal (EF003868) | No |
| Surface protection (EF000139) | Untreated |
| With hinged lid (EF000117) | No |
| With strain relief (EF000878) | Yes |
| Support ring (EF005709) | No |
| RAL-number (similar) (EF003882) | 7046 |
| Utilization (EF000133) | Other |
| Suitable for degree of protection (IP) (EF006755) | IP55 |
| Device depth (EF008810) | 60 mm |
| With buses/couplings (EF005043) | No |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK07 |
| Device width (EF008808) | 70.5 mm |
| Assembly arrangement (EF000005) | Other |
| Device height (EF008809) | 70.5 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | Grey |
