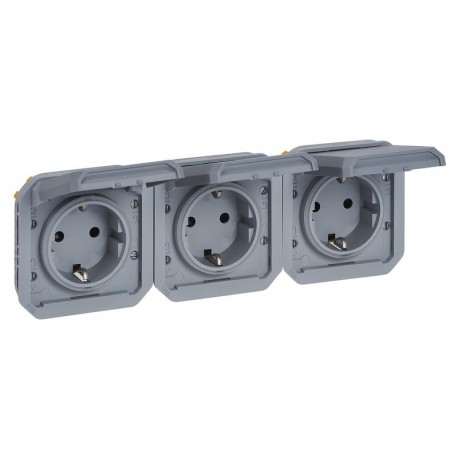

LEGRAND 069578L 069578L LEGRAND PL-COMP I/O 3X2P+T AUT HOR GR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

069578L LEGRAND PL-COMP I/O 3X2P+T AUT HOR GR

069578L

069578L

LEGRAND

5 Pcs.

PL-COMP I/O 3X2P+T AUT HOR GR Pre-wired power base Plexo IP 55-3x2P+T horizontal-modular-gray Pre-wired Plexo modular power base H IP55 -3x2P-auto-terminal Gray

Automation > Socket outlet

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 069578L is a triple-gang socket assembly equipped with protective hinged lids for secure outdoor or industrial utility. Multi-port weather-protected enclosures safeguard internal electrical contacts from dust and moisture exposure.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 16 A
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwless terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 6
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • Imprint/indication (EF003823): Degree of protection (IP)
  • With hinged lid (EF000117): Yes

More info

▲

Overview

Triple power base 2P+T 16A. For installation that needs protection against water and dust - IP55. Modular mechanism for horizontal surface or recessed installation.

Product features
  • Pre-wired power base - Automatic terminals - Gray - Modular
  • 16 A - 250 V~ - IP55 - IK08
  • Horizontal installation
  • Just one connection
  • Automatic terminal
description
3xP+vertical modular Plexo gray socket. Pre-wired power bases 16A - 250 V~ - Automatic terminals - One-piece mechanism, only one connection required - For surface installation boxes and two or three elements or for recessed supports 3 x 2P+T horizontal - Gray. Plexo - Waterproof mechanisms IP 55 - composable - pre-wired power bases, data, TV adapters and bases - The mechanisms are supplied with a finish front - Installation with surface boxes or with recessed support plates.

Highlights

Advantages in installation
  • Installation of the mechanism on the surface or recessed with box or frame

specifications

ModelCEE 7/3 socket (type F)
Protective contactOther
Number of active (round) contacts0
Number of active contacts (drawings)0
With signal lampNo
Number of USB-A ports0
Number of USB-C ports0
Number of Units3
Number of modules (in case of modular design)6
Number of interchangeable sockets0
Number of phases1
Printing/MarkingProtection Type (IP)
Connection MethodPlug clamp
With flip-top lidYes
With enhanced contact protectionYes
Label Space/Print AreaNo
ColourGrey
RAL number (similar)7046
Metallic colorNo
TransparentNo
LockableNo
Expulsion mechanismNo
Isolated installationNo
With functional lightingNo
With adjustable lightingNo
Surge protectionNo
Residual Current DeviceNo
With microfusionNo
Special power supplyNo special power supply
Type of mountingOther
Attachment TypeScrew mounting
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishMate
Antibacterial treatmentNo
With loop functionNo
With on/off switchNo
Rotated center insertNo
Nominal Voltage250 V
frequency50-60 Hz
Suitable for protection grade (IP)IP55
Degree of protection (IP), plug connectedIP44
Device width212.5 mm
Device height70.5 mm
Device Depth48.1 mm
Impact resistanceIK08
Compatible with Apple HomeKitNo
Compatible with Amazon AlexaNo
Compatible with Google AssistantNo
Compatible IFTTTNo
With Wi-Fi signal repeaterNo
With built-in bluetooth speakerNo
For server conditions according to VDEYes
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Type of voltageAC
Display of markings on the connection terminalsYes
PrewiredYes
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
Connected ObjectNo
