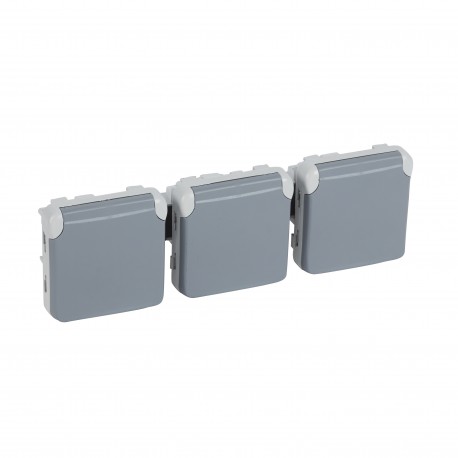

LEGRAND 069578 069578 LEGRAND PL-COMP E/S 3X2P+T AUT HOR GR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

069578 LEGRAND PL-COMP E/S 3X2P+T AUT HOR GR

069578

069578

LEGRAND

1 Pcs.

PL-COMP E/S 3X2P+T AUT HOR GR Base power prewired Plexus IP 55-3x2P+T horizontal-modular-grey Pre-wired Plexo IP55 power base - 3x2P+T horizontal - modular - Gray

Automation > Socket outlet
PLEXO-IDROBOX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 069578 is a flush mounted multi-gang socket assembly designed for structured commercial interiors and control desks. This equipment provides clustered access to utility power in locations requiring multiple connection points.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 16 A
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwless terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 6
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • Imprint/indication (EF003823): Degree of protection (IP)

More info

▲

Product features

Basis of current pre-wired 16 A - 250 V~ - Terminal auto - Mechanism, one-piece only requires one connection - To boxes for installation in surface area and two or three elements, or for media embedded 3 x 2P+e horizontal - Gray

General characteristics

Plexus - Mechanisms watertight IP 55 - composable - basis of current pre-wired, data, adapters, and bases of TV - The mechanisms are supplied with front finishing - Installation boxes for surface or with bracket plates-in wardrobes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
