View larger
Images are for illustrative purposes only. Please refer to data sheet for details
069576 LEGRAND PL-COMP E/S 2X2P+T AUT HOR GR
069576
069576
LEGRAND
5 Pcs.
PL-COMP E/S 2X2P+T AUT HOR GR

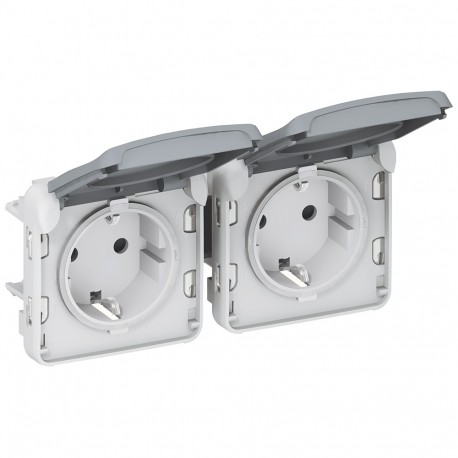

Socket outlet prewired Plexo IP55-German standard-2x2P+E horizontal-modular-grey
Pre-wired Plexo IP55 power base - 2x2P+T horizontal - modular - Gray
Automation > Socket outlet
PLEXO-IDROBOX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)5
- Volume (dm3)2.77
- Weight (g)635.00
Product characteristics
Prewired German standard socket outlets 16 A - 250 V~- Automatic terminals
- One piece mechanism, only one connection required
- For two or three gang surface-mounting boxes or flush-mounting supports
- Grey
General characteristics
Plexo™ mechanisms - prewired socket outlets, data, TV sockets and adaptors - IP 55- Mechanisms supplied with cover plate
- Installation with surface-mounting boxes or flush-mounting support frames
| Feature Name | Feature Value |
|---|---|
| Over voltage protection (EF001332) | No |
| Nominal current (EF000001) | 16 A |
| Rotated central insert (EF001331) | No |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Special power supply (EF001334) | EV006426 |
| Connection type (EF000124) | Screwless terminal |
| Fault current protection (EF001333) | No |
| Nominal voltage (EF000002) | 250 V |
| Number of modules (module system) (EF009573) | 4 |
| Compatible with Apple HomeKit (EF014925) | No |
| Eject-mechanism (EF001051) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Number of ports USB-C (EF017049) | 0 |
| Imprint/indication (EF003823) | Degree of protection (IP) |
| With hinged lid (EF000117) | Yes |
| Number of ports USB-A (EF000997) | 0 |
| Metallic colour (EF015260) | No |
| With Wi-Fi signal repeater (EF013509) | No |
| RAL-number (similar) (EF003882) | 7046 |
| Model (EF000010) | Socket outlet CEE 7/3 (type F) |
| Number of socket outlets switchable (EF008814) | 0 |
| Suitable for degree of protection (IP) (EF006755) | IP55 |
| Device depth (EF008810) | 48 mm |
| Impact strength (EF004293) | IK07 |
| Anti-bacterial treatment (EF023790) | No |
| Number of active contacts (square) (EF017115) | 0 |
| Protective contact (EF017116) | Other |
| Device width (EF008808) | 136 mm |
| With on/off switch (EF000488) | No |
| Device height (EF008809) | 64 mm |
| Colour (EF000007) | Grey |
| For heavy conditions according to VDE (EFDE0005) | No |
| Number of active contacts (flat) (EF011999) | 0 |
| Number of active contacts (round) (EF011998) | 4 |
| Material (EF002169) | Plastic |
| With orientation lighting (EF008862) | No |
| Label space/information surface (EF001035) | No |
| Surface finishing (EF006569) | Matt |
| Concurrently switching neutral conductor (EF005997) | No |
| Halogen free (EF000025) | Yes |
| Type of fastening (EF002442) | Mounting with screw |
| With function lighting (EF008861) | No |
| Transparent (EF006243) | No |
| Colour of switch operator (EF015518) | Grey |
| Insulated mounting (EF001588) | No |
| Surface protection (EF000139) | Untreated |
| Frequency (EF000416) | 50 Hz |
| Number of phases (EF000351) | 1 |
| With signal lamp (EF000198) | No |
| Lockable (EF000113) | No |
| With built-in bluetooth speaker (EF016914) | No |
| With miniature fuse (EF006571) | No |
| IFTTT support available (EF011072) | No |
| With enhanced contact protection (EF000389) | Yes |
| With loop through function (EF006604) | Yes |
