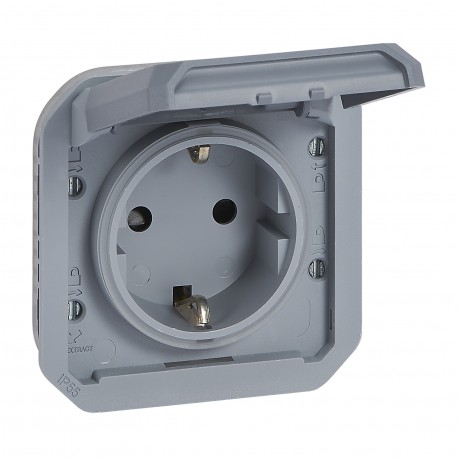

LEGRAND 069571L 069571L LEGRAND PL-COMP I/O 2P+T TORN GREY View larger
Images are for illustrative purposes only. Please refer to data sheet for details

069571L LEGRAND PL-COMP I/O 2P+T TORN GREY

069571L

069571L

LEGRAND

10 Pcs.

PL-COMP I/O 2P+T TORN GREY Plexo IP 55 modular power base - 2P+T - Gray - Screw terminal Plexo modular IP55 power base -2P+T-terminal torn-Gray

Automation > Socket outlet

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 069571L LEGRAND PL-COMP I/O 2P+T TORN GREY by Legrand is a specialized power outlet featuring a hinged enclosure lid to protect the connection interface from external elements. Such components are routinely deployed in semi-exposed commercial corridors and technical rooms to safeguard active circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 16 A
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwed terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 2
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • Imprint/indication (EF003823): Degree of protection (IP)
  • With hinged lid (EF000117): Yes

More info

▲

Overview

Power base 2P+T 16A. For installation that needs protection against water and dust - IP55. Modular mechanism for surface or recessed installation.

Product features
  • 2P+E power base with side earth contact - Screw terminal - Gray
  • 16 A - 250 V~ - IP55 - IK08
description
Base 2 poles+modular ground Plexo - Gray. 16A power bases - 250 V~ - With 2P+T side earth contact - Terminal with screws - Gray - IP 55 watertight mechanisms - composable - power bases and differential bases - The mechanisms are supplied with finish front - Installation with surface boxes or with recessed support plates.

Highlights

Advantages in installation
  • Installation of the mechanism on the surface or recessed with box or frame

specifications

ModelCEE 7/3 socket (type F)
Protective contactOther
Number of active (round) contacts0
Number of active contacts (drawings)0
With signal lampNo
Number of USB-A ports0
Number of USB-C ports0
Number of Units1
Number of interchangeable sockets0
Number of phases1
Printing/MarkingProtection Type (IP)
Connection MethodScrew-on terminal
With flip-top lidYes
With enhanced contact protectionYes
Label Space/Print AreaNo
ColourGrey
RAL number (similar)7046
Metallic colorNo
TransparentNo
LockableNo
Expulsion mechanismNo
Isolated installationNo
With functional lightingNo
With adjustable lightingNo
Surge protectionNo
Residual Current DeviceNo
With microfusionNo
Special power supplyNo special power supply
Type of mountingOther
Attachment TypeScrew mounting
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishMate
Antibacterial treatmentNo
With loop functionNo
With on/off switchNo
Rotated center insertNo
Nominal Voltage250 V
frequency50-60 Hz
Suitable for protection grade (IP)IP55
Degree of protection (IP), plug connectedIP44
Device width70.5 mm
Device height70.5 mm
Device Depth46 mm
Impact resistanceIK08
Compatible with Apple HomeKitNo
Compatible with Amazon AlexaNo
Compatible with Google AssistantNo
Compatible IFTTTNo
With Wi-Fi signal repeaterNo
With built-in bluetooth speakerNo
For server conditions according to VDEYes
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Type of voltageAC
Display of markings on the connection terminalsYes
PrewiredNo
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
Connected ObjectNo
