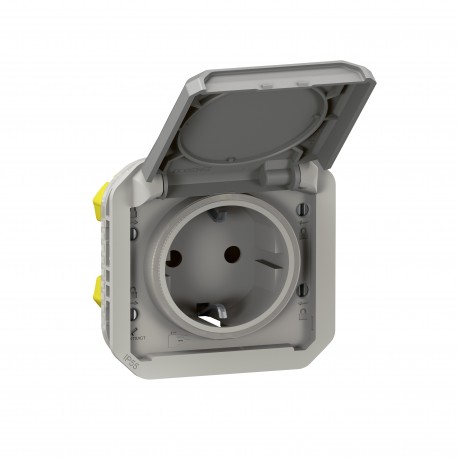

069570L LEGRAND PL-COMP I/O 2P+T AUT GREY
069570L
069570L
LEGRAND
10 Pcs.
Automation > Socket outlet
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 069570L LEGRAND PL-COMP I/O 2P+T AUT GREY compact socket outlet by Legrand ensures dependable power connectivity across diverse industrial and commercial environments. Receptacle modules of this standard type receive plugs to supply operating voltage to portable electrical devices. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Over voltage protection (EF001332): No
- Nominal current (EF000001): 16 A
- Rotated central insert (EF001331): No
- Material quality (EF001257): Thermoplastic
- Special power supply (EF001334): EV006426
- Connection type (EF000124): Screwless terminal
- Fault current protection (EF001333): No
- Nominal voltage (EF000002): 250 V
- Number of modules (module system) (EF009573): 2
- Compatible with Apple HomeKit (EF014925): No
- Eject-mechanism (EF001051): No
- Compatible with Amazon Alexa (EF014927): No
- Compatible with Google Assistant (EF014926): No
- Number of ports USB-C (EF017049): 0
- Min. depth of built-in installation box (EF012278): 0 mm
- Imprint/indication (EF003823): Degree of protection (IP)
More info
▲Overview
Power base 2P+T 16A. For installation that needs protection against water and dust - IP55. Modular mechanism for surface or recessed installation.
Product features
- 2P+E power base with side earth contact - Automatic terminal - Grey - Modular
- 16 A - 250 V~ - IP55 - IK08
- 2P+T Ground Side Contact
- Automatic terminal
description
Base 2 poles+modular ground Plexo - Gray. Power bases 16A - 250 V~ - With side earth contact 2P+T - Automatic terminal - Gray - IP 55 watertight mechanisms - composable - current bases and differential bases - The mechanisms are supplied with finish front - Installation with surface boxes or with recessed support plates.Highlights
Advantages in installation
- Installation of the mechanism on the surface or recessed with box or frame
specifications
| Model | CEE 7/3 socket (type F) |
|---|---|
| Protective contact | Other |
| Number of active (round) contacts | 0 |
| Number of active contacts (drawings) | 0 |
| Number of active contacts (square) | 0 |
| With signal lamp | No |
| Number of USB-A ports | 0 |
| Number of USB-C ports | 0 |
| Number of Units | 1 |
| Number of modules (in case of modular design) | 2 |
| Number of interchangeable sockets | 0 |
| Number of phases | 1 |
| Printing/Marking | Protection Type (IP) |
| Connection Method | Plug clamp |
| With flip-top lid | Yes |
| With enhanced contact protection | Yes |
| Label Space/Print Area | No |
| Colour | Grey |
| RAL number (similar) | 7046 |
| Metallic color | No |
| Transparent | No |
| Lockable | No |
| Expulsion mechanism | No |
| Isolated installation | No |
| With functional lighting | No |
| With adjustable lighting | No |
| Surge protection | No |
| Residual Current Device | No |
| With microfusion | No |
| Special power supply | No special power supply |
| Type of mounting | Other |
| Attachment Type | Screw mounting |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | No treatment |
|---|---|
| Surface Finish | Mate |
| Antibacterial treatment | No |
| With loop function | No |
| With on/off switch | No |
| Rotated center insert | No |
| Nominal intensity | 16 A |
| Nominal Voltage | 250 V |
| frequency | 50-60 Hz |
| Suitable for protection grade (IP) | IP55 |
| Degree of protection (IP), plug connected | IP44 |
| Device width | 70.5 mm |
| Device height | 70.5 mm |
| Device Depth | 46 mm |
| Impact resistance | IK08 |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible IFTTT | No |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| Min. depth of the recessed box | 0 mm |
| Complies with UK Building Regulations, Part M | No |
| For server conditions according to VDE | Yes |
| Installation Depth | 0 mm |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Type of voltage | AC |
| Display of markings on the connection terminals | Yes |
| Prewired | No |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Cable Holder | Not applicable |
| Connected Object | No |
