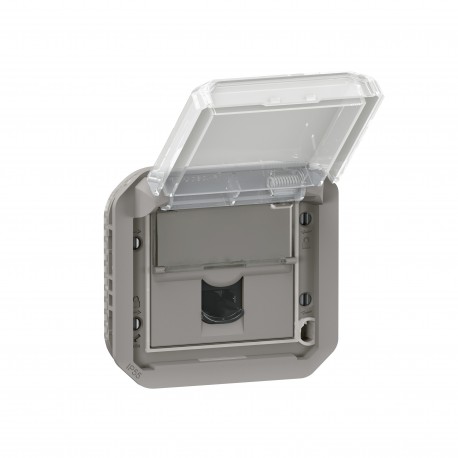

LEGRAND 069569L 069569L LEGRAND PL-COMP BASE RJ45 CAT6 FTP GR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

069569L LEGRAND PL-COMP BASE RJ45 CAT6 FTP GR

069569L

069569L

LEGRAND

5 Pcs.

PL-COMP BASE RJ45 CAT6 FTP GR RJ45 Cat.6 FTP Plexo Base - modular - Gray RJ45 Cat.6 FTP Plexo Modular Base - Gray

Automation > Data communication connection box copper (twisted pair)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 069569L is a surface-mounted dual RJ45 Category 6 FTP complete base designed for demanding environmental conditions. This rugged assembly provides robust network termination capabilities in areas exposed to dust and moisture thanks to its high ingress protection rating. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Duct installation (EF002440): No
  • With dust cover (EF003893): Yes
  • Colour coding (EF007758): Yes
  • Degree of protection (IP) (EF005474): IP55
  • With label space (EF003456): Yes
  • Shielded buses (EF002444): No
  • Shielded housing (EF002445): No
  • Separate earthing connection (EF002500): No
  • Connection type (EF000124): Insulation displacement connector
  • Type of fastening (EF002442): Screwing
  • Floor box/subfloor mounted (EF003455): No
  • With terminal resistor (EF005033): No
  • Mechanical coding (EF002910): Yes
  • RAL-number (EF000116): 7046
  • Type of connector (EF002935): 2x RJ45 8(8)
  • Surface mounting (EF003681): Yes

More info

▲

Overview

The RJ45 dock connects a device (PC, printer) to the local network (Internet box, switch). Cable distribution ensures a high-speed, secure, and reliable internet connection.

Product features
  • Base RJ45 Cat. 6 FTP Plexo - modular - Grey
description
RJ45 Databases - Cat. 6 - FTP - Modular - Plexo - Grey - Quick connection bases without the need for tools - IP55 (with closed lid) - IK08 - For recessed or surface installation in frame or box.

Highlights

Advantages in installation
  • Installation of the mechanism on the surface or recessed with box or frame

specifications

Surface mountingYes
Flush mountingYes
Duct InstallationNo
Ground-mounted/underground boxNo
Attachment TypeScrew
Type of mountingBasic element with center cover plate, Surface-mounted/slotted
Connector Type2x RJ45 8(8)
With sockets/couplingsYes
Suitable for the number of sockets/couplings1
category6
ColourGrey
RAL number7046
Connection MethodInsulation Displacement Connector
Shielded plugsNo
Shielded housingNo
Separate grounding connectionNo
With text boxYes
Separate cable strain reliefNo
Exit AddressStraight
With dust protectionYes
With termination resistanceNo
Protection Class (IP)IP55
Mechanical CodingYes
Color codingYes
Device width70.5 mm
Device height70.5 mm
Device Depth42.75 mm
Impact resistanceIK08
Operating Temperature-5-35 °C
Storage temperature-25-60 °C
Display of markings on the connection terminalsYes
Halogen-freeNo
Antibacterial treatmentNo
Cable HolderNot applicable
