View larger
Images are for illustrative purposes only. Please refer to data sheet for details

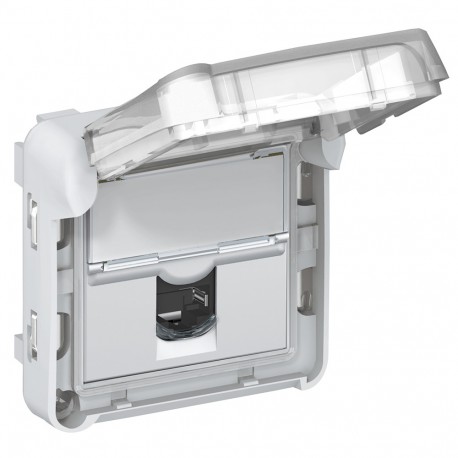

069569 LEGRAND PLEXUS RJ45 CAT.6 FTP CINZENTO
069569
069569
LEGRAND
5 Pcs.
PLEXUS RJ45 CAT.6 FTP CINZENTO
RJ 45 socket Plexo - category 6 FTP - IP55 - IK07 - grey/white
RJ45 Plexo socket category 6 FTP IP55 with closed shutter- IK07 - Grey/white
Automation > Data communication connection box copper (twisted pair)
PLEXO-IDROBOX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)5
- Volume (dm3)1.296
- Weight (g)381.00
Product characteristics
Cat. 6 Plexo RJ 45 sockets - IP 55 closed flap IK 07RJ 45 sockets
- Protection against water, dust
- For industrial sites
- Grey
- FTP socket
General characteristics
Legrand cabling system, LCS³ cat. 6 - RJ 45 sockets (Arteor, Soliroc and Plexo) and other connectors- Can be integrated in any supports
- Equipped with connectors with quick toolless connection
- Take single-core cables from AWG 22 up to AWG 26, and AWG 26 multicore cables
- T568A and B marking with colour codes
- Compliant with ISO/IEC 11 801, EN 50173 and ANSI/TIA 568 standards
| Feature Name | Feature Value |
|---|---|
| Duct installation (EF002440) | No |
| With dust cover (EF003893) | Yes |
| Colour coding (EF007758) | Yes |
| Degree of protection (IP) (EF005474) | IP55 |
| With label space (EF003456) | Yes |
| Shielded buses (EF002444) | No |
| Separate earthing connection (EF002500) | No |
| Connection type (EF000124) | Insulation displacement connector |
| Type of fastening (EF002442) | Screwing |
| Floor box/subfloor mounted (EF003455) | No |
| RAL-number (EF000116) | 0 |
| Type of connector (EF002935) | RJ45 8(8) |
| Surface mounting (EF003681) | Yes |
| Separate strain relief (EF002450) | No |
| Mounting method shielding connection (EF002497) | None |
| Device depth (EF008810) | 44.5 mm |
| With buses/couplings (EF005043) | Yes |
| Category (EF001619) | 6 |
| Device width (EF008808) | 64.1 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Device height (EF008809) | 64.7 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | Grey |
| Suitable for number of connectors (EF001579) | 1 |
| Flush-mounted installation (EF007517) | Yes |
