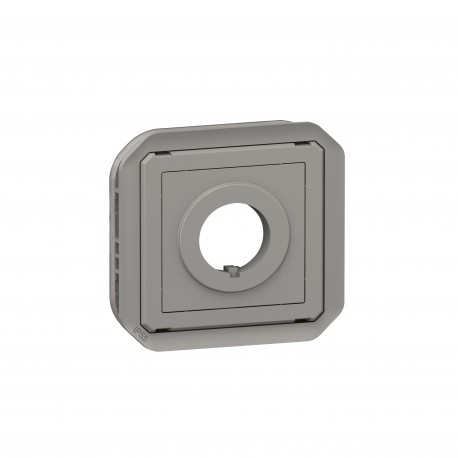

069568L LEGRAND PL-COMP ADAP OSMOZ GREY
069568L
069568L
LEGRAND
1 Pcs.
PL-COMP ADAP OSMOZ GREY
Plexo modular adapter for Osmoz mechanisms - Gray
Automation > Transition adapter for domestic switching devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Overview
Plexo waterproof adapter for Osmoz mechanisms
Product features
- Composable Plexo Adapter for Osmoz Mechanisms
- For the assembly of ocntrol units and Osmoz signalling of Ø 22mm with ring.
description
Adapter for mounting Osmoz control and signaling units Ø 22mm with ring.specifications
| Colour | Grey |
|---|---|
| RAL number (similar) | 7040 |
| With flip-top lid | No |
| With text box | No |
| Lockable | No |
| Dimensions | SQ70/SQ70 |
| Device width | 70.5 mm |
| Device height | 70.5 mm |
| Device Depth | 27 mm |
| Impact resistance | Not applicable |
|---|---|
| Protection Class (IP) | Not applicable |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Label Space/Print Area | No |
| Type of mounting | Other |
| Feature Name | Feature Value |
|---|---|
| RAL-number (similar) (EF003882) | 7040 |
| With label space (EF003456) | No |
| Lockable (EF000113) | No |
| Device depth (EF008810) | 27 mm |
| Device width (EF008808) | 70.5 mm |
| Device height (EF008809) | 70.5 mm |
| Dimensions (EF002567) | SQ70 / SQ70 |
| With hinged lid (EF000117) | No |
| Colour (EF000007) | Grey |
