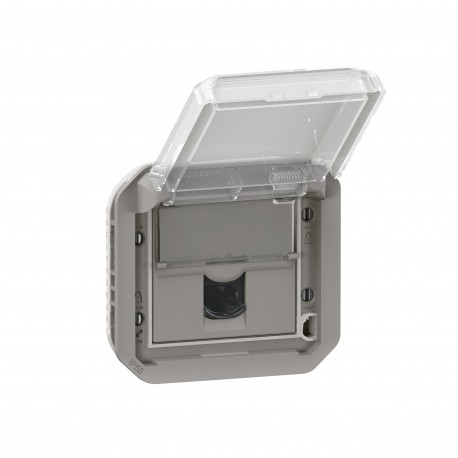

069561L LEGRAND PL-COMP BASE RJ45 CAT6A UTP GR
069561L
069561L
LEGRAND
5 Pcs.
Automation > Data communication connection box copper (twisted pair)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An 069561L LEGRAND PL-COMP BASE RJ45 CAT6A UTP GR functions as a modular data outlet connector designed for structured communication networks. Technicians deploy these interface points within commercial and industrial structured cabling layouts to terminate local area network wiring and establish reliable connections for workstations, switches, and peripheral hardware.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Duct installation (EF002440): No
- With dust cover (EF003893): Yes
- Colour coding (EF007758): Yes
- Degree of protection (IP) (EF005474): IP55
- With label space (EF003456): Yes
- Shielded buses (EF002444): No
- Shielded housing (EF002445): No
- Separate earthing connection (EF002500): No
- Connection type (EF000124): Insulation displacement connector
- Type of fastening (EF002442): Screwing
- Floor box/subfloor mounted (EF003455): No
- Number of modules (module system) (EF009573): 2
- With terminal resistor (EF005033): No
- Mechanical coding (EF002910): Yes
- RAL-number (EF000116): 7046
- Type of connector (EF002935): 2x RJ45 8(8)
More info
▲Overview
The RJ45 dock connects a device (PC, printer) to the local network (Internet box, switch). Cable distribution ensures a high-speed, secure, and reliable internet connection.
Product features
- Base RJ45 Cat. 6 UTP Plexo - modular - Grey
description
RJ45 Databases - Cat. 6 - UTP - Modular - Plexus - Grey - Quick connection bases without the need for tools - IP55 (with closed cover) - IK08 - For recessed or surface installation in frame or box.Highlights
Advantages in installation
- Installation of the mechanism on the surface or recessed with box or frame
specifications
| Surface mounting | Yes |
|---|---|
| Flush mounting | Yes |
| Duct Installation | No |
| Ground-mounted/underground box | No |
| Attachment Type | Screw |
| Type of mounting | Basic element with center cover plate, Surface-mounted/slotted |
| Connector Type | 2x RJ45 8(8) |
| With sockets/couplings | Yes |
| Suitable for the number of sockets/couplings | 1 |
| category | 6 |
| Colour | Grey |
| RAL number | 7046 |
| Connection Method | Insulation Displacement Connector |
| Shielded plugs | No |
| Shielded housing | No |
| Separate grounding connection | No |
| With text box | Yes |
|---|---|
| Separate cable strain relief | No |
| Shielding Connection Mount Type | none |
| Exit Address | Straight |
| With dust protection | Yes |
| With termination resistance | No |
| Protection Class (IP) | IP55 |
| Mechanical Coding | Yes |
| Color coding | Yes |
| Impact resistance | IK08 |
| Operating Temperature | -5-35 °C |
| Storage temperature | -25-60 °C |
| Display of markings on the connection terminals | Yes |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Cable Holder | Not applicable |
