View larger
Images are for illustrative purposes only. Please refer to data sheet for details

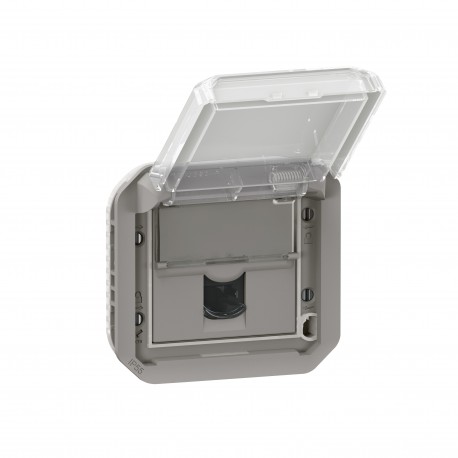

069559L LEGRAND PL-COMP BASE RJ45 CAT6A STP GR
069559L
069559L
LEGRAND
5 Pcs.
PL-COMP BASE RJ45 CAT6A STP GR
RJ45 Cat.6 STP Plexo Base - modular - Gray
RJ45 Cat.6 STP Plexo modular base - Gray
Automation > Data communication connection box copper (twisted pair)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Overview
The RJ45 dock connects a device (PC, printer) to the local network (Internet box, switch). Cable distribution ensures a high-speed, secure, and reliable internet connection.
Product features
- Base RJ45 Cat. 6 STP Plexo - modular - Grey
description
RJ45 Databases - Cat. 6 - STP - Modular - Plexus - Grey - Tool-free quick connect bases - IP55 (with closed cover) - IK08 - For recessed or surface installation in frame or box.Highlights
Advantages in installation
- Installation of the mechanism on the surface or recessed with box or frame
specifications
| Surface mounting | Yes |
|---|---|
| Flush mounting | Yes |
| Duct Installation | No |
| Ground-mounted/underground box | No |
| Attachment Type | Screw |
| Type of mounting | Basic element with center cover plate, Surface-mounted/slotted |
| Connector Type | 2x RJ45 8(8) |
| With sockets/couplings | Yes |
| Suitable for the number of sockets/couplings | 1 |
| category | 6A (IEC) |
| Colour | Grey |
| RAL number | 7046 |
| Connection Method | Insulation Displacement Connector |
| Shielded plugs | Yes |
| Shielded housing | No |
| Separate grounding connection | No |
| With text box | Yes |
| Separate cable strain relief | No |
| Shielding Connection Mount Type | none |
|---|---|
| Exit Address | Straight |
| With dust protection | Yes |
| With termination resistance | No |
| Protection Class (IP) | IP55 |
| Mechanical Coding | Yes |
| Color coding | Yes |
| Device width | 70.5 mm |
| Device height | 70.5 mm |
| Device Depth | 44.75 mm |
| Impact resistance | IK08 |
| Operating Temperature | -5-35 °C |
| Storage temperature | -25-60 °C |
| Display of markings on the connection terminals | Yes |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Cable Holder | Not applicable |
| Feature Name | Feature Value |
|---|---|
| Duct installation (EF002440) | No |
| With dust cover (EF003893) | Yes |
| Colour coding (EF007758) | Yes |
| Degree of protection (IP) (EF005474) | IP55 |
| With label space (EF003456) | Yes |
| Shielded buses (EF002444) | Yes |
| Shielded housing (EF002445) | No |
| Separate earthing connection (EF002500) | No |
| Connection type (EF000124) | Insulation displacement connector |
| Type of fastening (EF002442) | Screwing |
| Floor box/subfloor mounted (EF003455) | No |
| With terminal resistor (EF005033) | No |
| Mechanical coding (EF002910) | Yes |
| RAL-number (EF000116) | 7046 |
| Type of connector (EF002935) | 2x RJ45 8(8) |
| Surface mounting (EF003681) | Yes |
| Separate strain relief (EF002450) | No |
| Mounting method shielding connection (EF002497) | None |
| Device depth (EF008810) | 44.75 mm |
| With buses/couplings (EF005043) | Yes |
| Category (EF001619) | 6A (IEC) |
| Device width (EF008808) | 70.5 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Device height (EF008809) | 70.5 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | Grey |
| Suitable for number of connectors (EF001579) | 1 |
| Flush-mounted installation (EF007517) | Yes |
