View larger
Images are for illustrative purposes only. Please refer to data sheet for details

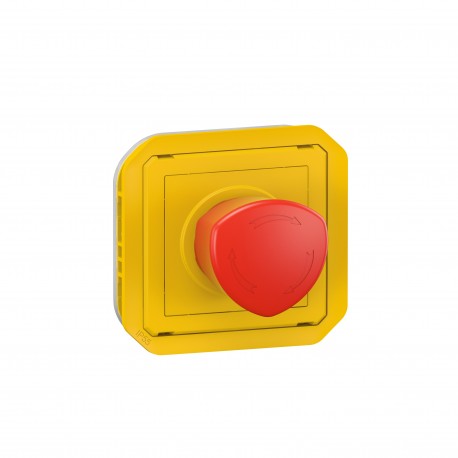

069549L LEGRAND PL-COMP I/O PULS EMERG 3A 1/4
069549L
069549L
LEGRAND
1 Pcs.
PL-COMP I/O PULS EMERG 3A 1/4
Plexo Composable Emergency Push Button – 1/4 Turn Unlock
Plexo modular emergency push button - 1/4 turn unlock
Automation > Emergency stop complete
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Overview
This button allows an emergency power cut. Includes "emergency cut" labels. Composable product for surface or recessed installation. Contact NA+NC.
Product features
- Plexo Composable Emergency Push Button - Grey/Yellow - To be installed with a frame for recessed installation or in a surface box.
- IP55 - 3A - 250V - IK07
- Emergency push button 1/4 turn - Contact NA+NC
- Yellow lid - Red button
- Supplied with "emergency stop" label in 4 languages
description
PLEXO surface or recessed emergency push button with 1/4 turn unlocking. Emergency cut 3A - 250V - Includes "emergency cut" labels in 4 languages - Yellow cap - Red button - NA + NC contact - Gray/yellow. Plexo - IP 55 watertight mechanisms - composable - emergency cut-off, beacon, blinds, thermostat.Highlights
Advantages in installation
- Installation of the mechanism on the surface or recessed with box or frame
specifications
| Unlock Type | Rotary opening mechanism |
|---|---|
| Number of Normally Closed Contacts | 1 |
| Number of contacts normally opened | 1 |
| Protection Class (IP) | IP55 |
| With light | No |
| Hole diameter | 22.5 mm |
| Auxiliary Circuit Connection Type | Threaded connection |
| Width | 70.5 mm |
| Height | 70.5 mm |
|---|---|
| Depth | 69 mm |
| Impact resistance | IK07 |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Type of voltage | AC |
| Nominal Voltage | 220-250 V |
| Terminal capacity | 1.5-2.5 mm² |
| Feature Name | Feature Value |
|---|---|
| Connection type auxiliary circuit (EF006820) | Screw connection |
| With lighting (EF003829) | No |
| Degree of protection (IP) (EF005474) | IP55 |
| Hole diameter (EF000079) | 22.5 mm |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Unlocking method (EF001403) | Turn-release |
