LEGRAND 069549 069549 LEGRAND PL-COMP E/S PULS EMERG 3A 1/4 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

069549 LEGRAND PL-COMP E/S PULS EMERG 3A 1/4

069549

069549

LEGRAND

1 Pcs.

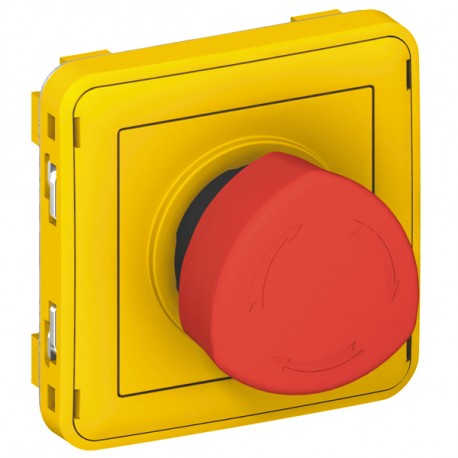

PL-COMP E/S PULS EMERG 3A 1/4 Emergency stop button Plexo IP55 - stay-put 1/4 release- modular - grey/yellow Plexo modular emergency push button – 1/4 turn unlock

Automation > Emergency stop complete
PLEXO-IDROBOX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand emergency stop pushbutton functions as a manual control device designed to halt hazardous machinery immediately when safety is compromised. These operators are routinely integrated into industrial control stations to interrupt power circuits during emergency situations, protecting both personnel and equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Connection type auxiliary circuit (EF006820): Screw connection
  • With lighting (EF003829): No
  • Degree of protection (IP) (EF005474): IP55
  • Mounting method (EF000003): Built-in
  • Hole diameter (EF000079): 22.5 mm
  • Number of contacts as normally closed contact (EF008255): 1
  • Number of contacts as normally open contact (EF008256): 1
  • Unlocking method (EF001403): Turn-release

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.68
  • Weight (g)116.00
Product characteristics
Emergency stop functions 3 A - 250 V~
  • Supplied with ''emergency stop'' label in 8 languages. Yellow cover plate, red button
Emergency stop - stay put 1/4 release - N/O + N/C contact
  • Key removable in 0 position
  • Grey/yellow
General characteristics
Plexo™ mechanisms - controls and socket outlets IP 55
  • Mechanisms supplied with cover plate
  • Installation with surface-mounting boxes or flush-mounting support frames
