> LEGRAND > 069548L

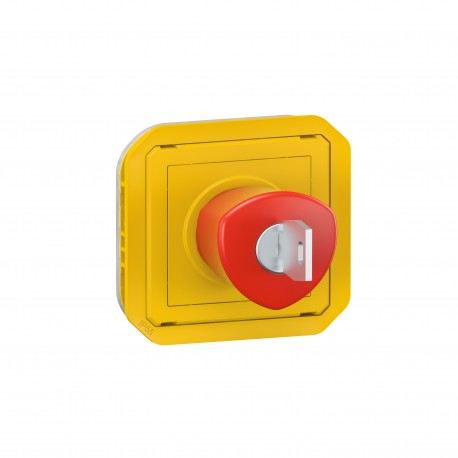

LEGRAND 069548L 069548L LEGRAND PL-COMP I/O PULS EMERG 3A LLAV View larger
Images are for illustrative purposes only. Please refer to data sheet for details

069548L LEGRAND PL-COMP I/O PULS EMERG 3A LLAV

069548L

069548L

LEGRAND

1 Pcs.

PL-COMP I/O PULS EMERG 3A LLAV Plexo composable emergency button – unlock with reset key Plexo Modular Emergency Push Button - with Reset Key

Automation > Emergency stop complete

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Overview

This button allows an emergency power cut. Includes "emergency cut" labels. Composable product for surface or recessed installation. Contact NA+NC.

Product features
  • Plexo Composable Emergency Push Button - Grey/Yellow - To be installed with a frame for recessed installation or in a surface box.
  • IP55 - 3A - 250V - IK07
  • Emergency button with reset key - Contact NA+NC
  • Yellow lid - Red button
  • Supplied with "emergency stop" label in 4 languages
Recommendations / Restrictions
  • Removable keys in position 0
  • Supplied with a set of 2 RONIS keys nº455
description
PLEXO surface or recessed emergency push button with key unlocking RONIS Nº455. Emergency cut 3A - 250V - Includes "emergency cut" labels in 4 languages - Yellow cap - Red button - NA + NC contact - Gray/yellow. Plexo - IP 55 watertight mechanisms - composable - emergency cut-off, beacon, blinds, thermostat. - Removable keys in position 0 - Supplied with a set of 2 keys.

Highlights

Advantages in installation
  • Installation of the mechanism on the surface or recessed with box or frame

specifications

Unlock TypeDecoupling by key
Number of Normally Closed Contacts1
Number of contacts normally opened1
Protection Class (IP)IP55
With lightNo
Hole diameter22.5 mm
Auxiliary Circuit Connection TypeThreaded connection
Width70.5 mm
Height70.5 mm
Depth73 mm
Impact resistanceIK07
Operating Temperature-10-40 °C
Storage temperature-25-60 °C
Type of voltageAC
Nominal Voltage220-250 V
Terminal capacity1.5-2.5 mm²

ETIM for 069548L Low-voltage industrial controls and switchgear (EC002034)
Feature Name Feature Value
Connection type auxiliary circuit (EF006820) Screw connection
With lighting (EF003829) No
Degree of protection (IP) (EF005474) IP55
Hole diameter (EF000079) 22.5 mm
Number of contacts as normally closed contact (EF008255) 1
Number of contacts as normally open contact (EF008256) 1
Unlocking method (EF001403) Key-release
