View larger
Images are for illustrative purposes only. Please refer to data sheet for details

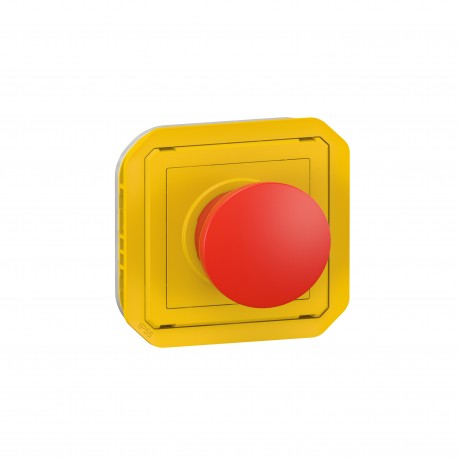

069547L LEGRAND PL-COMP I/O PULS EMERG 3A CUFF
069547L
069547L
LEGRAND
1 Pcs.
PL-COMP I/O PULS EMERG 3A CUFF
Plexo composable emergency button – fist stop
Plexo modular emergency push button - fist strike stop
Automation > Emergency stop complete
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Overview
This button allows an emergency power cut. Includes "emergency cut" labels. Modular product to complete with surface box or recessed frame. Contact NC.
Product features
- Plexo Composable Emergency Push Button - Grey/Yellow - To be installed with a frame for recessed installation or in a surface box.
- IP55 - 3A - 250V - IK07
- Emergency stop button Grip - 1 NC contact - Unipolar
- Yellow lid - Red button
- Supplied with "emergency stop" label in 4 languages
description
FLEXO composable surface emergency push button. Emergency cut 3A - 250V - Includes "emergency cut" labels in 4 languages - Yellow cover - Red button - Emergency stop button with fist stop - NC contact - Grey/yellow. Plexus - Waterproof mechanisms IP 55 - composable - surface or recessed - emergency cut, beacon, blinds, thermostat.Highlights
Advantages in installation
- Installation of the mechanism on the surface or recessed with box or frame
specifications
| Unlock Type | Other |
|---|---|
| Number of Normally Closed Contacts | 1 |
| Number of contacts normally opened | 0 |
| Protection Class (IP) | IP55 |
| With light | No |
| Hole diameter | 22.5 mm |
| Auxiliary Circuit Connection Type | Threaded connection |
| Width | 70.5 mm |
| Height | 70.5 mm |
|---|---|
| Depth | 65 mm |
| Impact resistance | IK07 |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Type of voltage | AC |
| Nominal Voltage | 220-250 V |
| Terminal capacity | 1.5-2.5 mm² |
| Feature Name | Feature Value |
|---|---|
| Connection type auxiliary circuit (EF006820) | Screw connection |
| With lighting (EF003829) | No |
| Degree of protection (IP) (EF005474) | IP55 |
| Hole diameter (EF000079) | 22.5 mm |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Unlocking method (EF001403) | Other |
