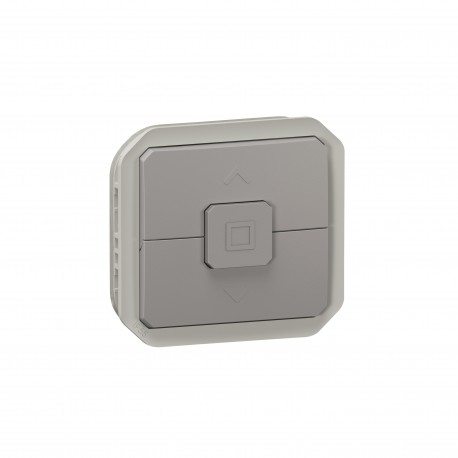

069538L LEGRAND PL-COMP I/O CONM PERS 10A GREY
069538L
069538L
LEGRAND
1 Pcs.
PL-COMP I/O CONM PERS 10A GREY
Double switch direct motor/shutter mechanism Plexo modular gray
Plexo modular double motor/shutter switch - Gray
Automation > Venetian blind switch/-push button
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Overview
3-position 6AX switch for direct motor control of blinds or awnings for areas where water and dust protection is needed (IK55). Composable product for surface or recessed installation.
Product features
- Plexo composable shutter switch - Gray
- IP55 - IK06
- 10A - 250V
- To control the roller shutter motor
- To be installed with a frame for flush-mounted installation or in a surface box
description
Plexo modular shutter switch - Gray. Shutter and awning control - IP 55 - IK 06 - For direct control of shutter motor - 6AX - 250V - 500W max - emergency cut, beacon, blinds, thermostat.Highlights
Advantages in installation
- Roller Shutter Command
specifications
| Type of mounting | Basic Element with Center Cover Plate, Others |
|---|---|
| Model | Other |
| Number of poles | 1 |
| Type of operation | Other |
| Mechanically Driven | Yes |
| Electronically operated | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Attachment Type | Screw mounting |
| Connection Method | Plug clamp |
| Colour | Grey |
| RAL number (similar) | 7046 |
| Transparent | No |
| Label Space/Print Area | No |
| Suitable for protection grade (IP) | IP55 |
| Nominal current | 6 A |
| Nominal Voltage | 250 V |
| Number of buttons | 3 |
| Device width | 70.5 mm |
|---|---|
| Device height | 70.5 mm |
| Device Depth | 40 mm |
| Installation Depth | 34.5 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Impact resistance | IK07 |
| Operating Temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Lighting Type | Not applicable |
| Display of markings on the connection terminals | Yes |
| Antibacterial treatment | No |
| Number of terminals | 3 |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Contains battery and/or accumulator | No |
| Feature Name | Feature Value |
|---|---|
| Mechanical controllable (EF005993) | Yes |
| Label space/information surface (EF001035) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Mounting with screw |
| Halogen free (EF000025) | Yes |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Other |
| Connection type (EF000124) | Screwless terminal |
| Nominal voltage (EF000002) | 250 V |
| Transparent (EF006243) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Number of poles (EF001391) | 1 |
| Surface protection (EF000139) | Untreated |
| Built-in depth (EF000218) | 34.5 mm |
| Number of buttons (EF003144) | 3 |
| RAL-number (similar) (EF003882) | 7046 |
| Model (EF000010) | Other |
| Suitable for degree of protection (IP) (EF006755) | IP55 |
| Device depth (EF008810) | 40 mm |
| Electronic controllable (EF006570) | No |
| IFTTT support available (EF011072) | No |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Device width (EF008808) | 70.5 mm |
| Device height (EF008809) | 70.5 mm |
| Rated current (EF000227) | 6 A |
| Colour (EF000007) | Grey |
| Method of operation (EF000006) | Other |
