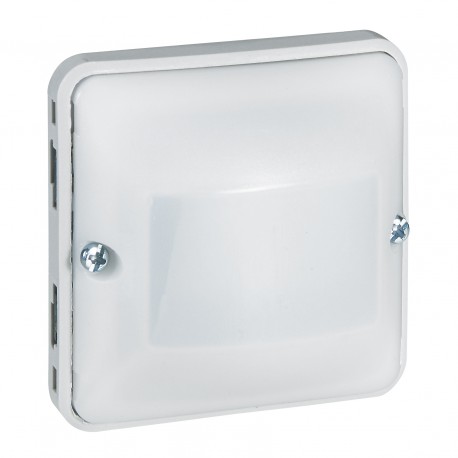

LEGRAND 069520 069520 LEGRAND PL-COMP I/O IR SENSOR 2H 250W View larger
Images are for illustrative purposes only. Please refer to data sheet for details

069520 LEGRAND PL-COMP I/O IR SENSOR 2H 250W

069520

069520

LEGRAND

1 Pcs.

PL-COMP I/O IR SENSOR 2H 250W Automatic switch Plexo without neutral - 2-wire - IP55 IK07 - 230 V~ - 50 Hz - grey/white Ecodetector, 230V, neutral-free, 2-wire

Automation > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 069520 LEGRAND PL-COMP I/O IR SENSOR 2H 250W operates as a reliable movement sensor designed for automatic indoor lighting control. Devices of this category detect thermal motion to activate connected electrical loads, helping to reduce power consumption in corridors, offices, and utility rooms.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height: 70.5 mm
  • With remote control: No
  • Bridging switch: No
  • Staircase light controller: Yes
  • Connection type: Screwed terminal
  • Material quality: Thermoplastic
  • Mounting method: Flush mounted
  • Min. switch-on time: 10 s
  • Compatible with Apple HomeKit: No
  • Detection angle horizontal: 120 °
  • Compatible with Amazon Alexa: No
  • Compatible with Google Assistant: No
  • Networkable: No
  • Response value sensitivity adjustable: No
  • Animal zone: No
  • Model: Movement sensor

More info

▲
  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)0.677
  • Weight (g)128.00
Product characteristics
Automatic switches 230 V~ - 50 Hz
  • IP 55 - IK 07
  • Infrared detection
  • Detection distance: 8 m
  • Detection angle 120°
  • Adjustable time delay: 10 s to 10 min
  • Light level threshold: 5 to 1275 lux
  • Should preferably be installed in box depth 50 mm
Without neutral, 2-wire
  • For installation in place of a 1-gang switch, with no additional wiring
  • For controlling lamps:
    • LEDs: 3 to 100 W
    • compact fluorescent: 3 to 100 W
    • LEDs, CFLs, halogen, fluorescent tubes with ferromagnetic or electronic ballast: 3 to 250 VA
    • 230 V halogen, incandescent: 3 to 250 W
  • Option of connecting up to 3 automatic switches
  • For LEDs and compact fluorescent lamps, if several automatic switches are installed on the same circuit, the minimum load increases
  • Consumption on standby: 0.02 W
  • Grey/White
General characteristics
Plexo™ mechanisms - switches, push-buttons and automatic switches IP 55
  • Mechanisms supplied with cover plate
  • Installation with surface-mounting boxes or flush-mounting support frames
  • Automatic terminals
