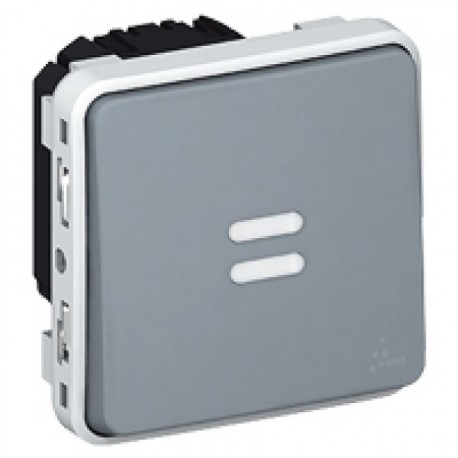

LEGRAND 069504 069504 LEGRAND PL-COMP E/S INT TEMP 1000W GR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

069504 LEGRAND PL-COMP E/S INT TEMP 1000W GR

069504

069504

LEGRAND

5 Pcs.

PL-COMP E/S INT TEMP 1000W GR Time lag switch Plexo IP55 - illuminated electronic 250 V~ - modular - grey Luminous timer switch Plexo modular gray - 230V - 50/60Hz

Automation > Timer for domestic switching devices
PLEXO-IDROBOX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

069504 LEGRAND PL-COMP E/S INT TEMP 1000W GR produced by Legrand controls electrical loads and timing functions in demanding environments. Electronic timer switches of this caliber manage lighting or ventilation cycles automatically to optimize energy efficiency in installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Plastic
  • Surface finishing (EF006569): Glossy
  • Halogen free (EF000025): Yes
  • Material quality (EF001257): Thermoplastic
  • Nominal voltage (EF000002): 250 V
  • Compatible with Apple HomeKit (EF014925): No
  • Transparent (EF006243): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Surface protection (EF000139): Untreated
  • RAL-number (similar) (EF003882): 7016
  • Suitable for degree of protection (IP) (EF006755): IP55
  • IFTTT support available (EF011072): No
  • Assembly arrangement (EF000005): Basic unit
  • Time setting (EF001038): 0.41 min
  • Rated current (EF000227): 8 A

More info

▲
  • Energy efficiency solution
  • Pack (number of units)5
  • Volume (dm3)1.296
  • Weight (g)446.00
Product characteristics
Illuminated time lag switches - 250 V~
  • Electronic time lag switch - IP 55
  • 2-wire connection
  • Supplied with lamp
  • Temporization: 25 s to 15 min.
  • Maximum loads:
    • 1000 W incandescent and halogen 230 V~
    • 400 W halogen 130 V
    • 400 VA ELV halogen lamps
    • 400 VA fluorescent lamps
    • 2300 W resistive (heating)
  • Grey
General characteristics
Plexo™ mechanisms - controls and socket outlets IP 55
  • Mechanisms supplied with cover plate
  • Installation with surface-mounting boxes or flush-mounting support frames
