View larger
Images are for illustrative purposes only. Please refer to data sheet for details

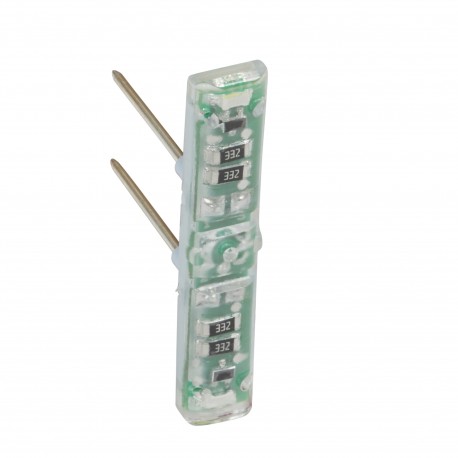

067689L LEGRAND MO-LED EASY PILOT 12/24/48V
067689L
067689L
LEGRAND
10 Pcs.
MO-LED EASY PILOT 12/24/48V
Mosaic EasyLed Pylon Function Lamp - 12-24-48 V
Mosaic EasyLed pilot function lamp - 12/24/48 V~
Automation > Lamp holder block for control circuit devices
MOSAIC, ARTEOR AND CELIANE MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
EASYLED Indicators Pilot Function - Inserted directly onto the mechanism by removing the key - 12/24/48V - 0.006/0.033/0.153W - White LED lightGeneral features
Mosaic - EASYLED Indicators| Feature Name | Feature Value |
|---|---|
| Connection type auxiliary circuit (EF006820) | Flat plug-in connection |
| Rated voltage Ue at AC 50 Hz (EF007029) | 12 V |
| Lamp type (EF002423) | LED |
| Type of fastening (EF002442) | Front fastening |
| With integrated diode (EF001400) | Yes |
| With integrated voltage decreasing resistor (EF001399) | Yes |
| Voltage type for actuating (EF008242) | AC |
| Rated voltage Ue at AC 60 Hz (EF007030) | 12 V |
| Rated voltage Ue at DC (EF007031) | 12 V |
| Transformer integrated (EF001358) | No |
| Colour light source (EF001402) | White |
| Lamp holder (EF000048) | None |
| With light source (EF005905) | Yes |
