View larger
Images are for illustrative purposes only. Please refer to data sheet for details

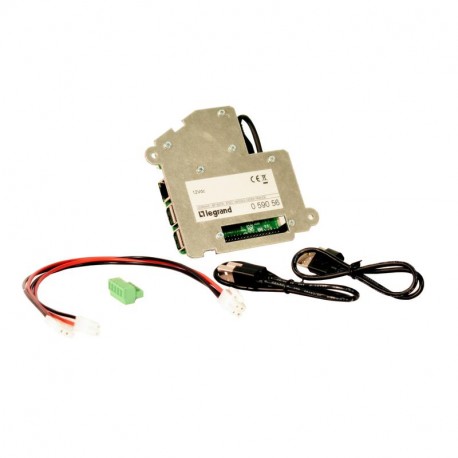

059056 LEGRAND PACK COMMUNICATION IP PREMIUM
059056
059056
LEGRAND
1 Pcs.
PACK COMMUNICATION IP PREMIUM
IP communication kit for connecting Green'up Premium charging station to the installation's IP network
Communication kit for Green'up Premium metal terminal blocks
Automation > Fieldbus, decentr. periphery - communication module
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)2.649
- Weight (g)575.00
Product characteristics
Communication kit- For controlling functions embedded in the charging station and configuring the charging station remotely from a smartphone or PC via IP (RJ 45) or Wi-Fi
- Access control: for association with centralised readers Cat.No 0 767 04 or standalone readers via the Wiegand protocol
- For connecting the charging station to the installation’s IP network and ensuring its compatibility with the following protocols:
- OCPP 1.6, 2.0
- MODBUS RS 485 (one MODBUS address per single charging station and two MODBUS adresses per double charging station)
General characteristics
Green'up™ Premium charging stations - communication options| Feature Name | Feature Value |
|---|---|
| Fieldbus connection over separate bus coupler possible (EF004002) | No |
| Radio standard UMTS (EF008525) | No |
| Height (EF000040) | 30 mm |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| With potential separation (EF003272) | Yes |
| System accessory (EF004118) | Yes |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Depth (EF000049) | 110 mm |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 120 mm |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Rack-assembly possible (EF007018) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for KNX (EF003055) | No |
| Degree of protection (IP) (EF005474) | IP00 |
| Radio standard WLAN 802.11 (EF007179) | Yes |
| Supporting protocol for LON (EF003017) | No |
| Supply voltage AC 50 Hz (EF007532) | 180 V |
| Supporting protocol for Data-Highway (EF003058) | No |
| Front built-in possible (EF007016) | Yes |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supply voltage DC (EF007534) | 10 V |
| Suitable for safety functions (EF001597) | Yes |
| Suitable for rail mounting (EF003972) | No |
| IO link master (EF007298) | No |
| Radio standard Bluetooth (EF007178) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Appendant operation agent (Ex ib) (EF004142) | Yes |
| Supporting protocol for CAN (EF003053) | No |
| Appendant operation agent (Ex ia) (EF004141) | Yes |
| Supporting protocol for TCP/IP (EF003050) | Yes |
| Supporting protocol for ASI (EF003051) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
