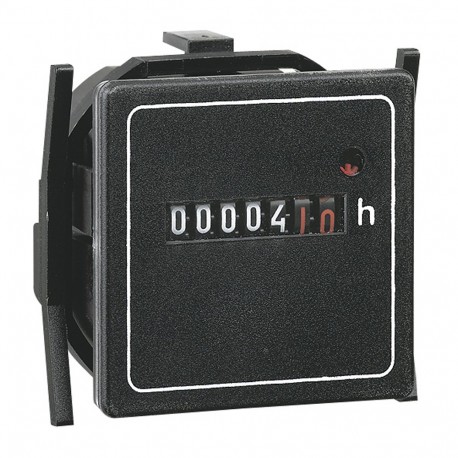

049552 LEGRAND COUNTER HOURS ANALOG. 24V
049552
049552
LEGRAND
1 Pcs.
Automation > Hour meter
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand hour counter is an electromechanical panel-mount gauge used to log cumulative operating time on industrial systems and electrical machinery. These counters provide straightforward visual verification of equipment runtime to assist with servicing schedules. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 48 mm
- Model (EF000010): Analogue
- Operation indication (EF004881): Yes
- Degree of protection (IP) (EF005474): IP40
- Front plate width (EF004689): 48.5 mm
- Voltage type (EF000187): AC
- Mounting method (EF000003): Front mounting
- Type of drive (EF001422): Mains synchronous
- Input voltage (EF003840): 24 V
- Number of digits (EF005555): 7
- Count area (EF005440): 99999.99 h
- Diameter panel opening (EF004691): 55 mm
- Front plate height (EF004690): 55 mm
- Frequency input voltage (EF006705): 50 Hz
- Built-in depth (EF000218): 32 mm
- Width (EF000008): 48 mm
More info
▲- Pack (number of units)1
- Volume (dm3)0.365
- Weight (g)77.00
- One-piece device
- IP 40
- Front mounting on enclosure or cabinet doors
- Synchronous motor operation (operation indicator)
- For counting the operating hours of an electrical machine or device, with no reset
- Supplied with cover frame (55 x 55 mm) (for round cut-out) and fixing accessories
- Connection: 2 x 1.5 mm²
- 24 V~ - 50 Hz
- Ammeters, voltmeters, totalising, can be mounted on XL³ 800 and XL³ 4000 curved doors
