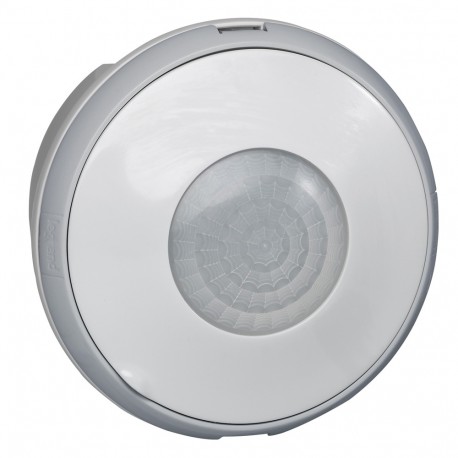

LEGRAND 048932 048932 LEGRAND PIR DETECTOR 360 ° ALCAN:20M 3H View larger
Images are for illustrative purposes only. Please refer to data sheet for details

048932 LEGRAND PIR DETECTOR 360 ° ALCAN:20M 3H

048932

048932

LEGRAND

1 Pcs.

PIR DETECTOR 360 ° ALCAN:20M 3H Detector PIR 360º - reach to 8m - IP55 - installation recessed / ceiling PIR Detector 360º - range 8m - IP55 - recessed/ceiling installation

Automation > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Product features

Special places step outside, wet rooms and spaces, high-rise - Fixation in the ceiling - surface - Detection by infrared 360°, - Scope of Ø25 m to 10 m height, 8 m to 2.5 m in height - 3-wire, with neutral - optimum Distance between 2 sensors: 20 m - Consumption 0.4 W in standby mode - Compatible with wire paths of type Cablofil

General characteristics

Detectors 1 output for areas with natural lighting presence Verification and constant brightness, off when natural light is sufficient - 2 possible operating modes: - Auto Mode: On and off automátcio in function of the detection - Eco Mode: Power-on manual by means of push-button, auto-off or manual - precise Regulation by means of configurator mobile - Timing adjustable: 5sg 59 min - brightness Threshold: 5 to 1275 lux

ETIM for 048932 Domestic wiring accessories and controls (EC000133)
Feature Name Feature Value
With remote control (EF000483) No
Material quality (EF001257) Thermoplastic
Mounting method (EF000003) Flush mounted
Min. switch-on time (EF006589) 5 s
Compatible with Apple HomeKit (EF014925) No
Detection angle horizontal (EF006582) 360 °
Compatible with Amazon Alexa (EF014927) No
Compatible with Google Assistant (EF014926) No
Networkable (EF003904) No
Response value sensitivity adjustable (EF003429) Yes
RAL-number (similar) (EF003882) 9006
Animal zone (EF006311) No
Model (EF000010) Presence detector
With alarm function (EF005624) No
Optimum mounting height (EF008011) 10 m
Max. duty cycle (EF006590) 60 min
Anti-bacterial treatment (EF023790) No
With acoustic sensor (EF017675) No
Background monitoring (EF017674) No
Connection cable length (EF003636) 0 mm
Temperature (EF001731) -25 °C
Colour (EF000007) White
With connection cable (EF005036) No
Suitable for wireless transmission (EF001198) Yes
Degree of protection (IP) (EF005474) IP55
Material (EF002169) Plastic
Response value luminosity adjustable (EF007575) Yes
Surface finishing (EF006569) Glossy
Halogen free (EF000025) Yes
Transparent (EF006243) No
Dim function with dimmer basic element (EF003808) Yes
Forced switch off (EF003920) Yes
Surface protection (EF000139) Other
Diameter reach on floor (EF003843) 25 m
Frequency (EF000416) 50 Hz
Remote operation (EF003848) Yes
Constant light control (EF003863) Yes
With DALI interface (EF009569) No
Nominal voltage (EF005127) 230 V
Max. reach sideways (EF001323) 25 m
Number of switching zones (EF009568) 2
Max. reach frontally (EF001322) 25 m
IFTTT support available (EF011072) No
Creep-under protection (EF000147) Yes
Teach-function for response value luminosity (EF003898) Yes
Response value luminosity (EF003814) 5 lx
