View larger
Images are for illustrative purposes only. Please refer to data sheet for details

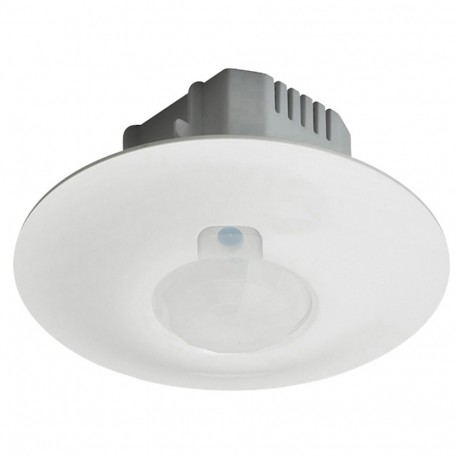

048820 LEGRAND DETECTOR SCS PIR 360º,45M2 EMP
048820
048820
LEGRAND
1 Pcs.
DETECTOR SCS PIR 360º,45M2 EMP
Lighting management--wall mounting-IR-360°-for 47 m² areas - flush mounting
BUS/SCS detector for lighting management. Mosaic - false ceiling - IR - 45m²
Automation > Sensor element for movement sensor
AUTONOMOUS LIGHTING MANAGEMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Energy efficiency solution
- Pack (number of units)1
- Volume (dm3)0.869
- Weight (g)160.00
Product characteristics
Ideal for passage areasPIR technology ceiling-mounting Lighting Management sensor, 360°
- Range Ø8 m
- IP 20
- Optimum distance between 2 sensors: 6 m
- Consumption: 0.2 W on standby
- Fixes directly to a false ceiling with mounting claws (included) or installed in a Batibox box, depth 50 mm
- Can be surface-mounted on ceiling using accessory Cat.No 0 488 75
General characteristics
Lighting Management sensors for managing several circuits - Lighting Management sensors for controllers for passage areas and working areas with natural light- Check presence and light level continuously, switch off when there is sufficient natural light
- Automatic switch-on/off (factory setting)
- Precise on-site adjustment using configuration tool
- Connect to controllers by cord or RJ 45 cable or BUS/SCS cable to be fitted with RJ 45 connector Cat.No 0 488 72
| Feature Name | Feature Value |
|---|---|
| Suitable for wireless transmission (EF001198) | No |
| Staircase light controller (EF001098) | Yes |
| Material (EF002169) | Plastic |
| Response value luminosity adjustable (EF007575) | Yes |
| Mounting height (EF003874) | 2.5 m |
| Mounting method (EF000003) | Flush mounted |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Min. switch-on time (EF006589) | 30 s |
| Combination movement sensor/push button switch (EF016109) | No |
| Compatible with Apple HomeKit (EF014925) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| Detection angle horizontal (EF006582) | 0 ° |
| Compatible with Google Assistant (EF014926) | No |
| Dim function with dimmer basic element (EF003808) | No |
| Diameter reach on floor (EF003843) | 8 m |
| Networkable (EF003904) | Yes |
| Response value sensitivity adjustable (EF003429) | Yes |
| RAL-number (similar) (EF003882) | 9003 |
| Operation mode switch (EF004530) | No |
| Model (EF000010) | Movement sensor |
| Animal zone (EF006311) | No |
| Constant light control (EF003863) | Yes |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Max. reach sideways (EF001323) | 4 m |
| Max. duty cycle (EF006590) | 256 min |
| IFTTT support available (EF011072) | No |
| Creep-under protection (EF000147) | Yes |
| Colour (EF000007) | White |
| Teach-function for response value luminosity (EF003898) | No |
| HVAC-control (EF003858) | No |
